Leibinger JET3 Series - Figure 112 - System Info - Export System Info File)

Page 226 Job Editor Group 8
Release 2.02 JET3 Series

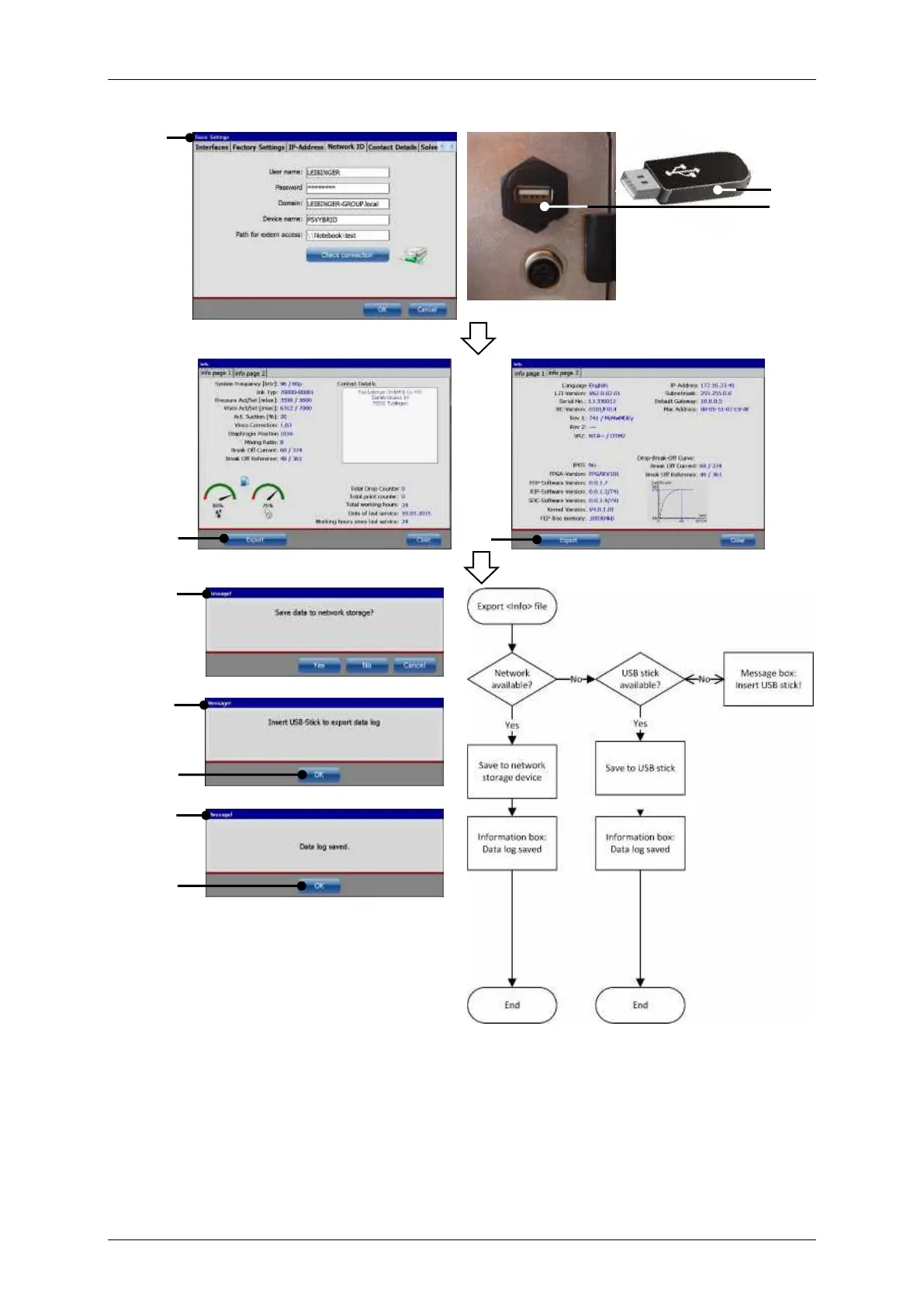

Figure
112
Export system info file
or
1 – <Network ID> Configuration
5 – Message box <Insert USB stick>
2 – USB socket / USB stick
6 – Message box <Data log> saved
3 – <Export > button
7 – <OK> Button
4 – Confirmation prompt <Network
storage>
1
2
1
3
1
4
1
3
1
5
1
6
6
1
7
1
7
1
