6.2.6 Summary of the individual proceduresFigure
Figure
15

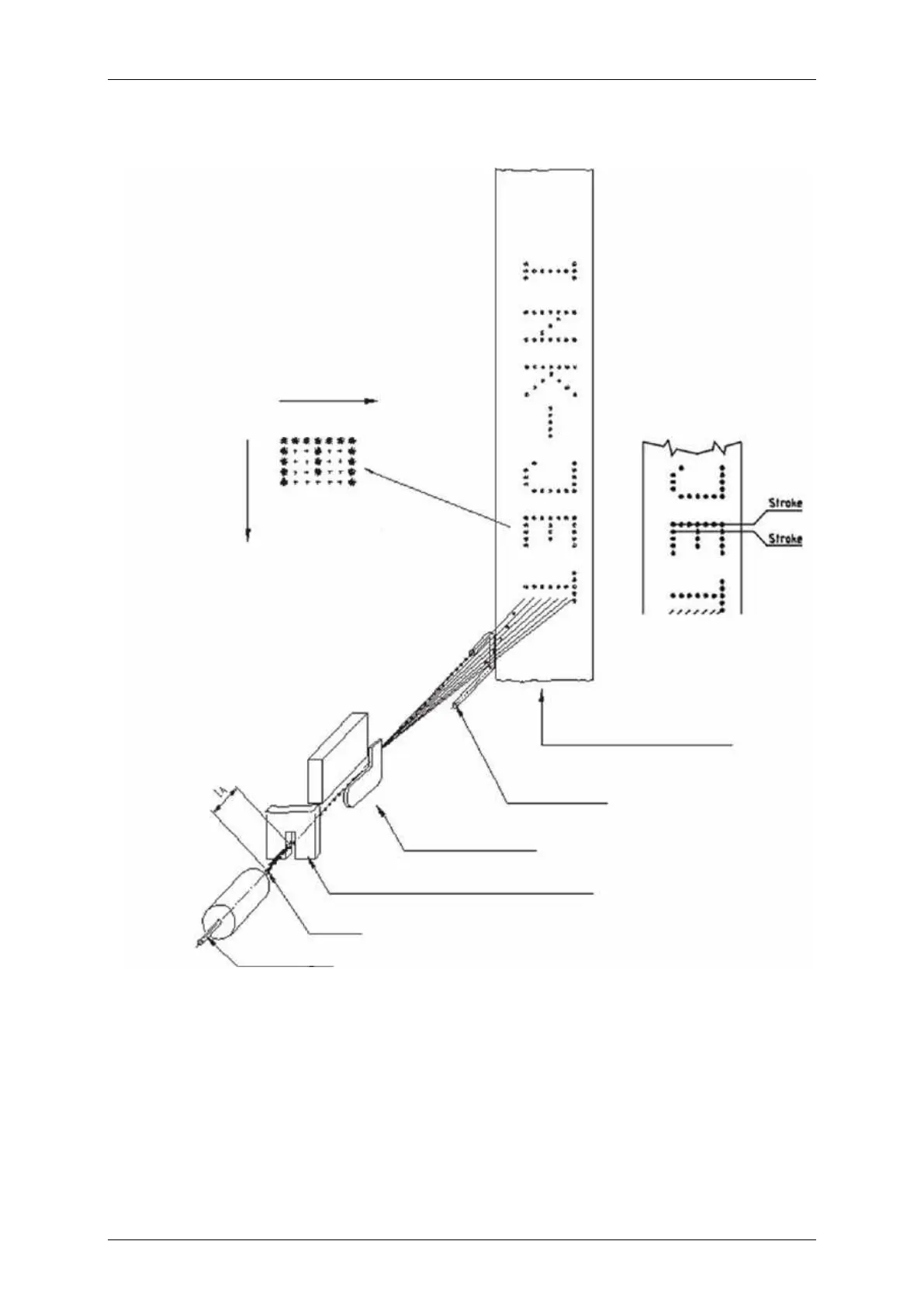

Character creation process
X
X+1
Character height created
by drop deflection
Character „E“ build with a
7 x 5 matrix
Rel. movement direction
of the description area
Drop brake-off point
Gutter
Deflector plate
Charge electrode with deflector electrode
Character width created by the rel. movement of the description area
Nozzle (jet)
Oscillator
