Description and Operation 4-13
D-H023.0906EN
innovators in agriculture

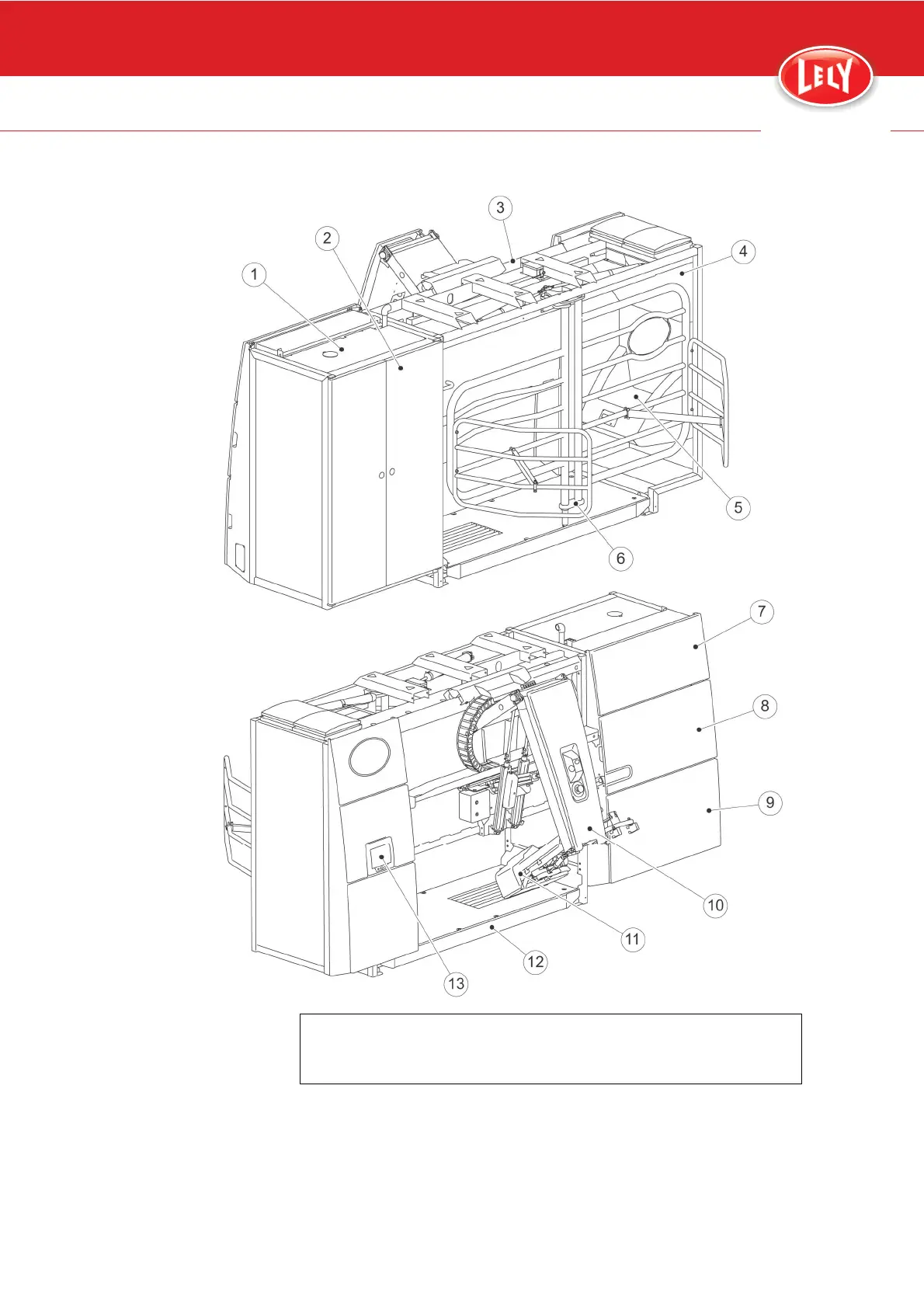

KEY:
1. Machine room - 2. Machine room door - 3. Box - 4. Feed funnel - 5. Feed bin -
6. Entrance/Exit Gates - 7. Upper cover - 8. Middle cover - 9. Lower cover - 10. Robot Arm
- 11. Mothership - 12. Weigh floor - 13. X-Link
Figure 7. Astronaut Milking Robot (LH Model)
