4-14 Description and Operation
D-H023.0906EN
innovators in agriculture
KEY:

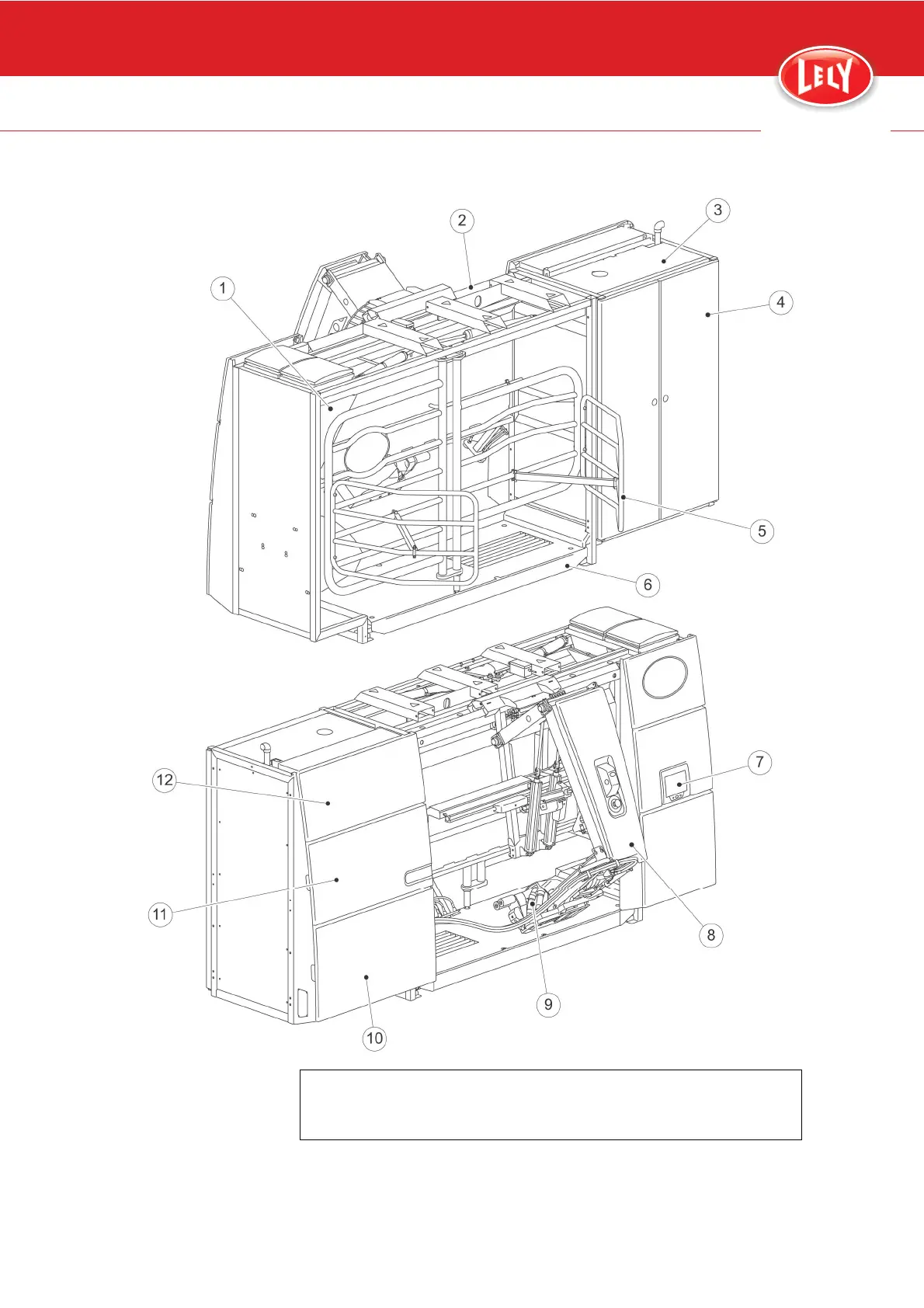

1. Feed hopper - 2. Box - 3. Machine Room - 4. Machine room doors - 5. Entrance/Exit
Gates - 6. Weigh Floor - 7. X-Link - 8. Robot Arm - 9. Mothership - 10. Lower cover -
11. Middle cover - 12. Upper cover
Figure 8. Astronaut Milking Robot (RH Model)
