Lexmark XC4150 - Motor Cover Removal

3 Remove the waste toner bottle.

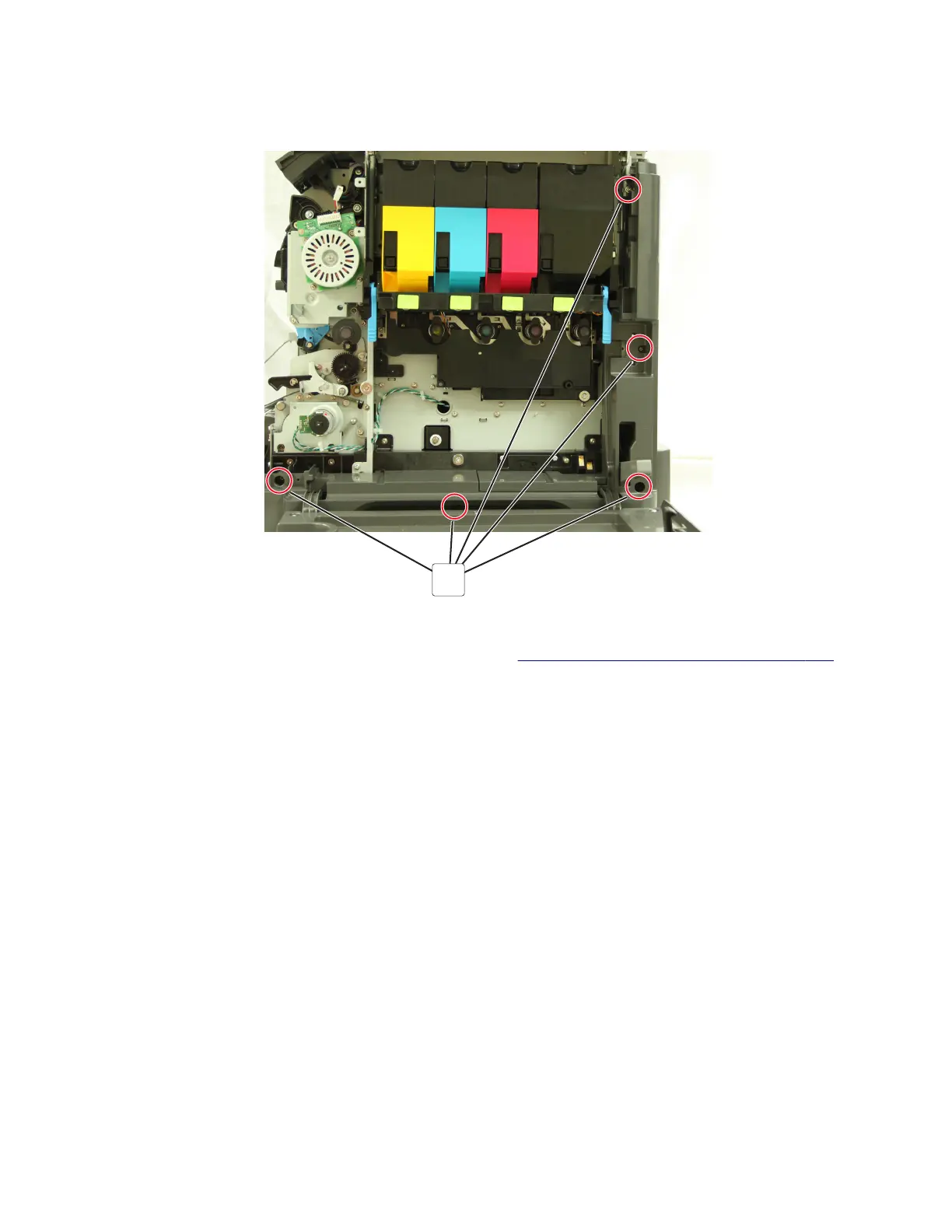

4 Remove the five screws (A).
A
5 Remove the right cover from the printer.
6 Remove the right cover from the imaging unit cover. See “Imaging unit cover removal” on page 378.
Motor cover removal
1 Open the toner door.
2 Open the imaging unit cover.
7528
Repair information
319
