Lexmark XC4150 - Sensors (Fuser Buckle and Narrow Media) Removal

To Next Page

To Previous Page

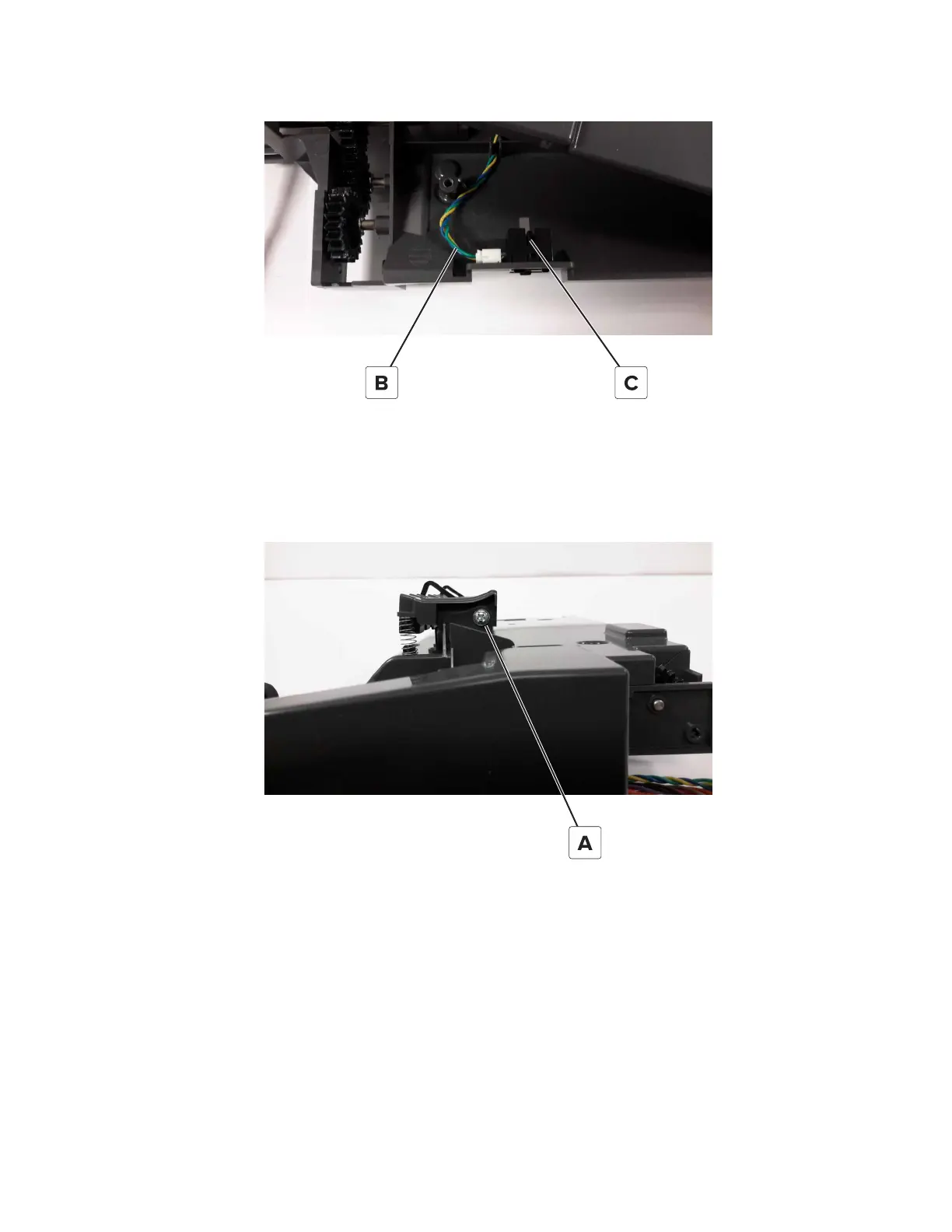

5 Disconnect the sensor cable (B), and then remove the sensor (C).

Sensors (fuser buckle and narrow media) removal

1 Open the front cover.

2 Remove the screw (A).

7528

Repair information

348
