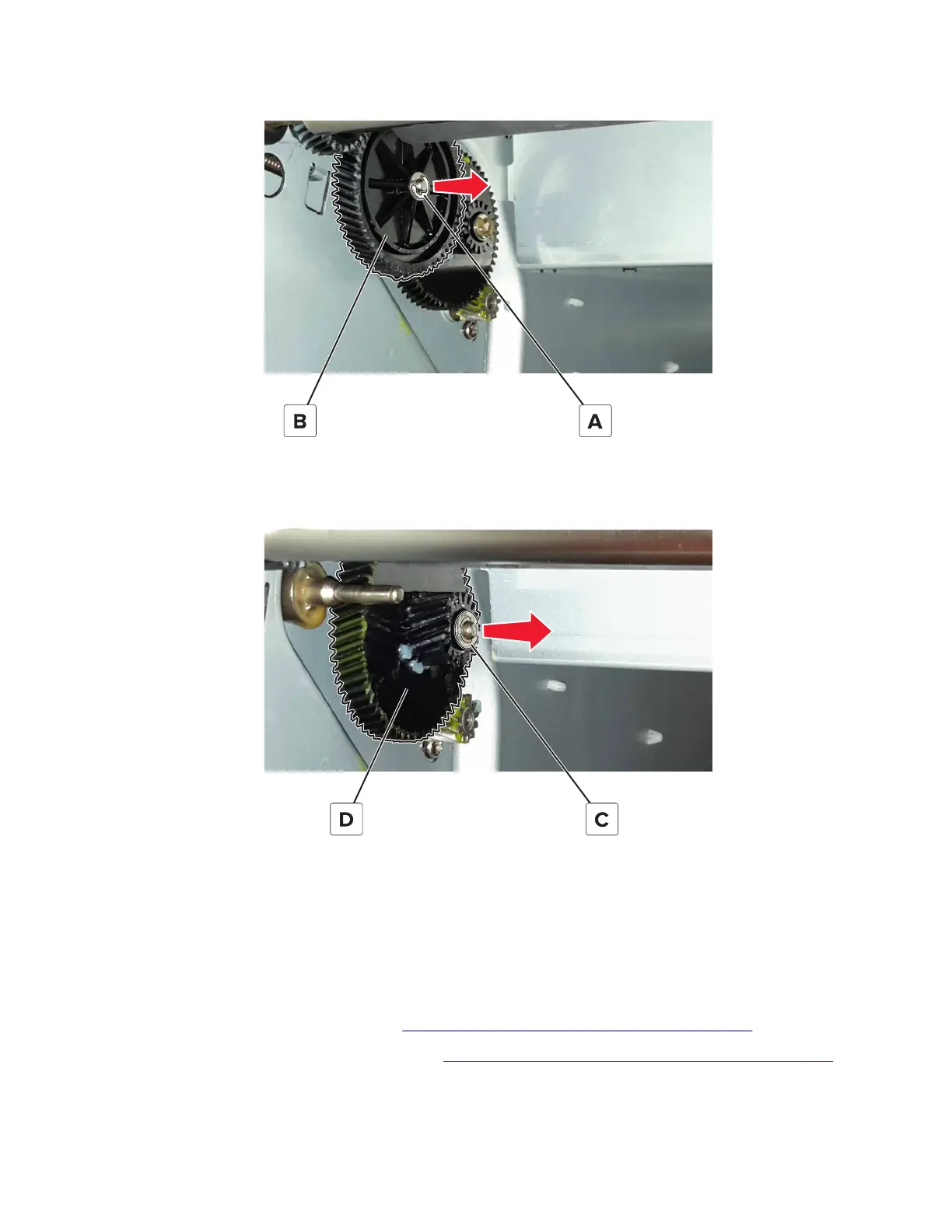

4 Remove the E‑clip (A), and then remove the outer gear (B).
Installation note: Use the washer in the new gear.
5 Remove the E‑clip (C), and then remove the inner gear (D).
Installation note: Use the washer in the new gear.
ADF and flatbed removals
ADF removal
1 Remove the controller board shield. See “Controller board shield removal” on page 408.
2 Remove the inner controller board shield. See “Inner controller board shield removal” on page 409.
7528
Repair information
426
