Toner door removal

1 Open the toner door.

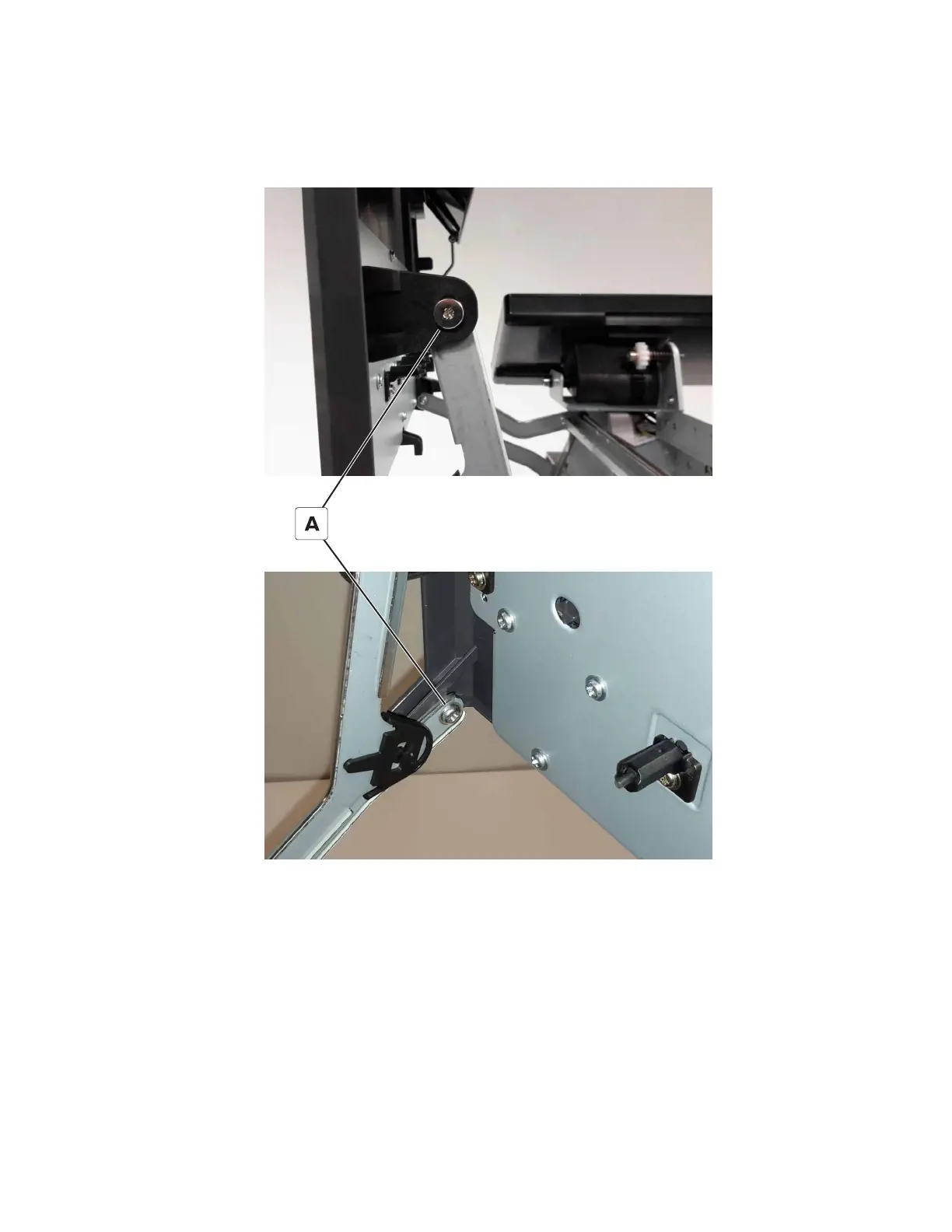

2 Remove the two screws (A) securing the toner door on the front side of the printer.

7528

Repair information

322
