Identifying the type of fuser used in the printer

1 Open the front cover.

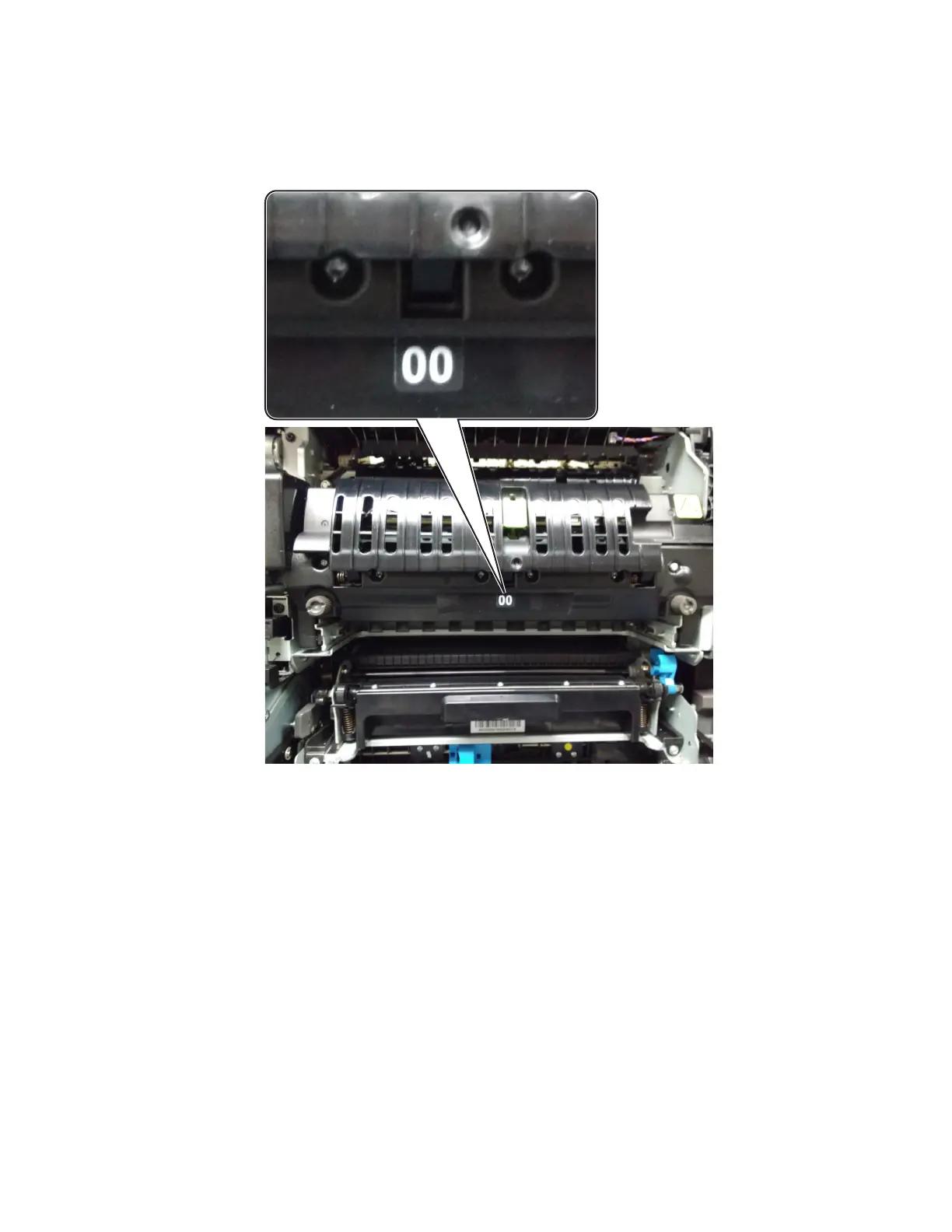

2 Locate the identiﬁcation number on the fuser.

7528

Maintenance

481
