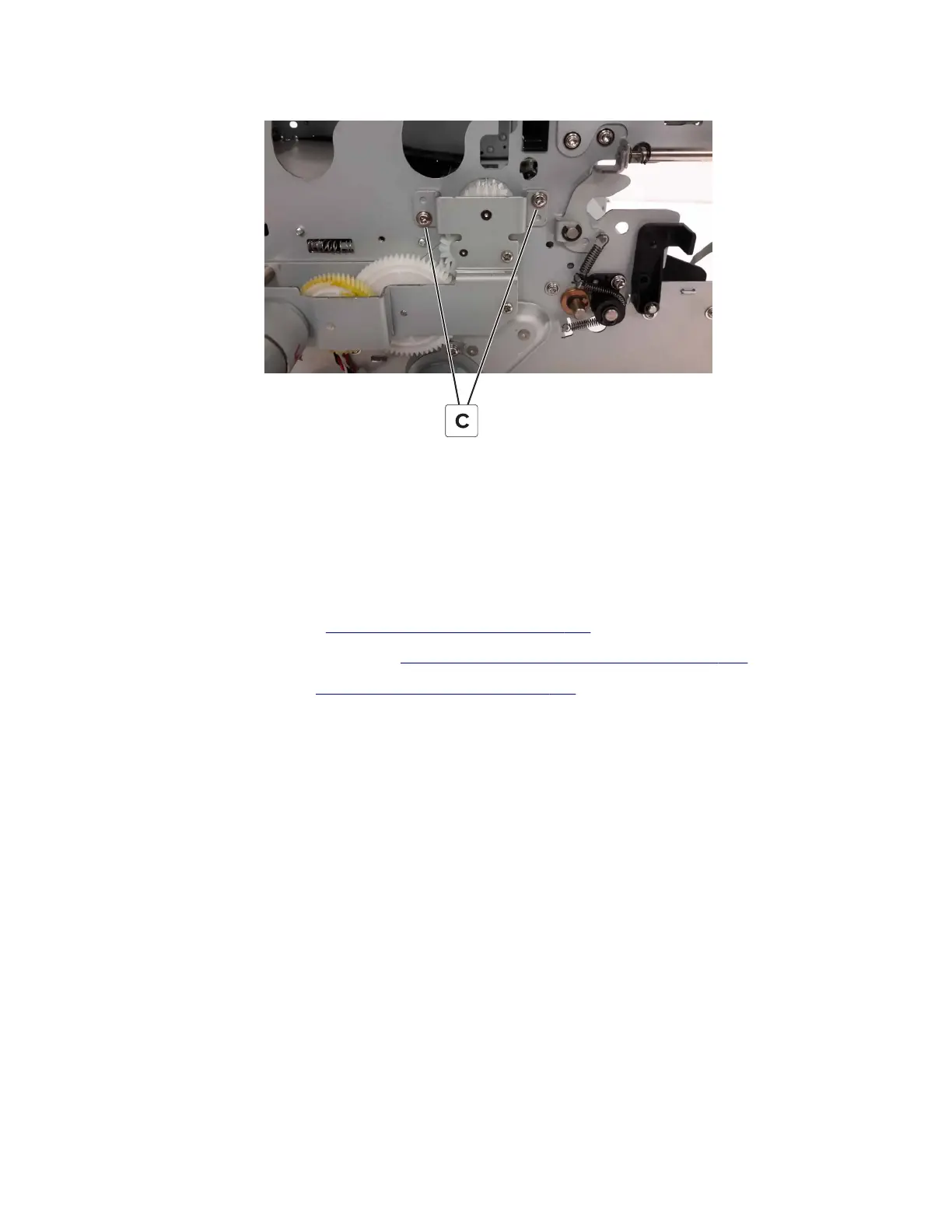

8 Remove the two screws (C), and then remove the motor.
Right removals
Sensor (weather station) removal
1 Remove the waste toner bottle.
2 Remove the motor cover. See “Motor cover removal” on page 319.
3 Remove the scanner rear left cover. See “Scanner rear left cover removal” on page 335.
4 Remove the right cover. See “Right cover removal” on page 318.
7528
Repair information
365
