Installation note: Make sure to replace this screw first before replacing the three screws to secure the
unit.

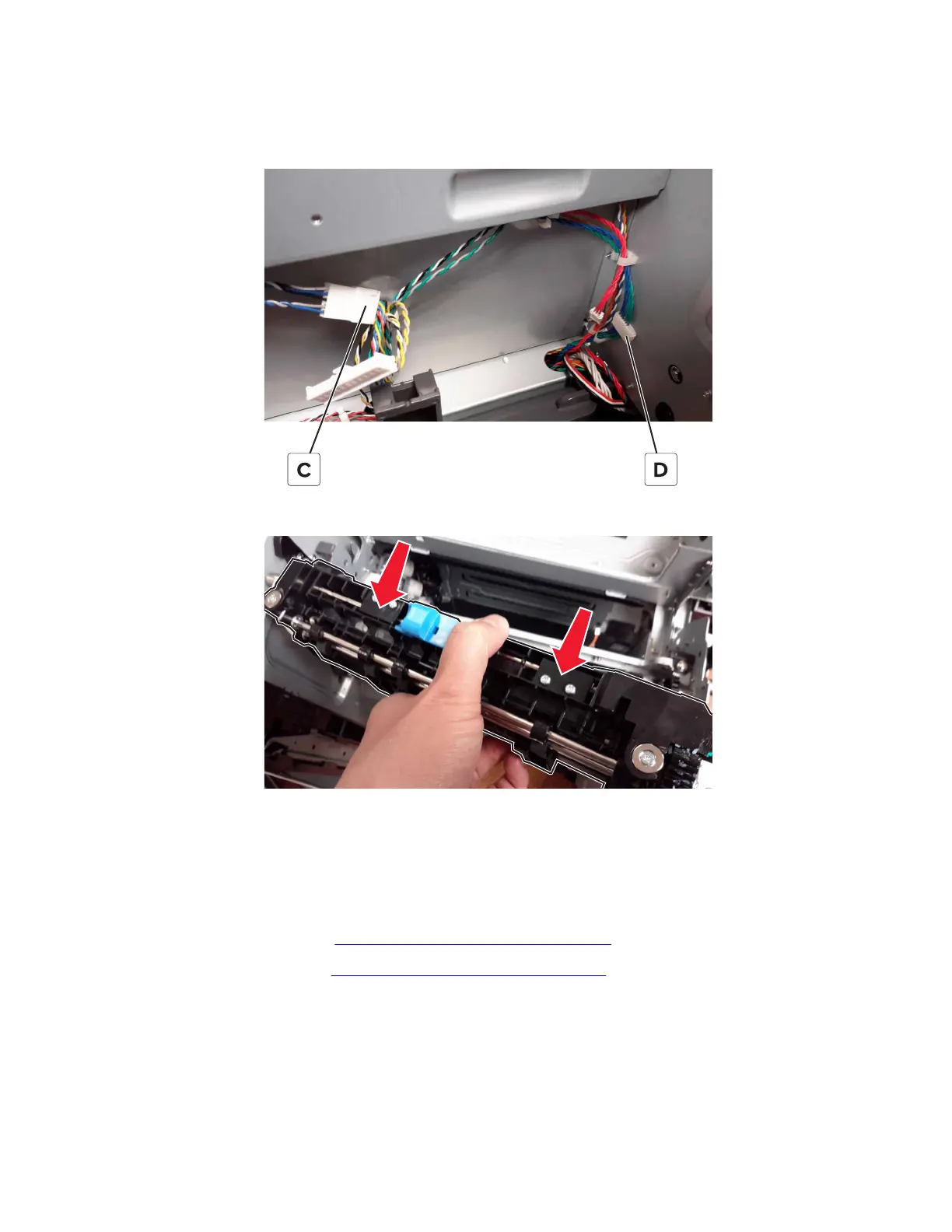

5 Disconnect the motor cable (C) and sensor cable (D).
6 Tilt the right portion of the isolation unit to the front, and then remove the unit.
7 Route the isolation unit cables out of the printer.
Aligner idler gears removal
1 Remove the imaging kit.
2 Remove the media feeder. See “Media feeder removal” on page 422.
3 Remove the isolation unit. See “Isolation unit removal” on page 423.
7528
Repair information
425
