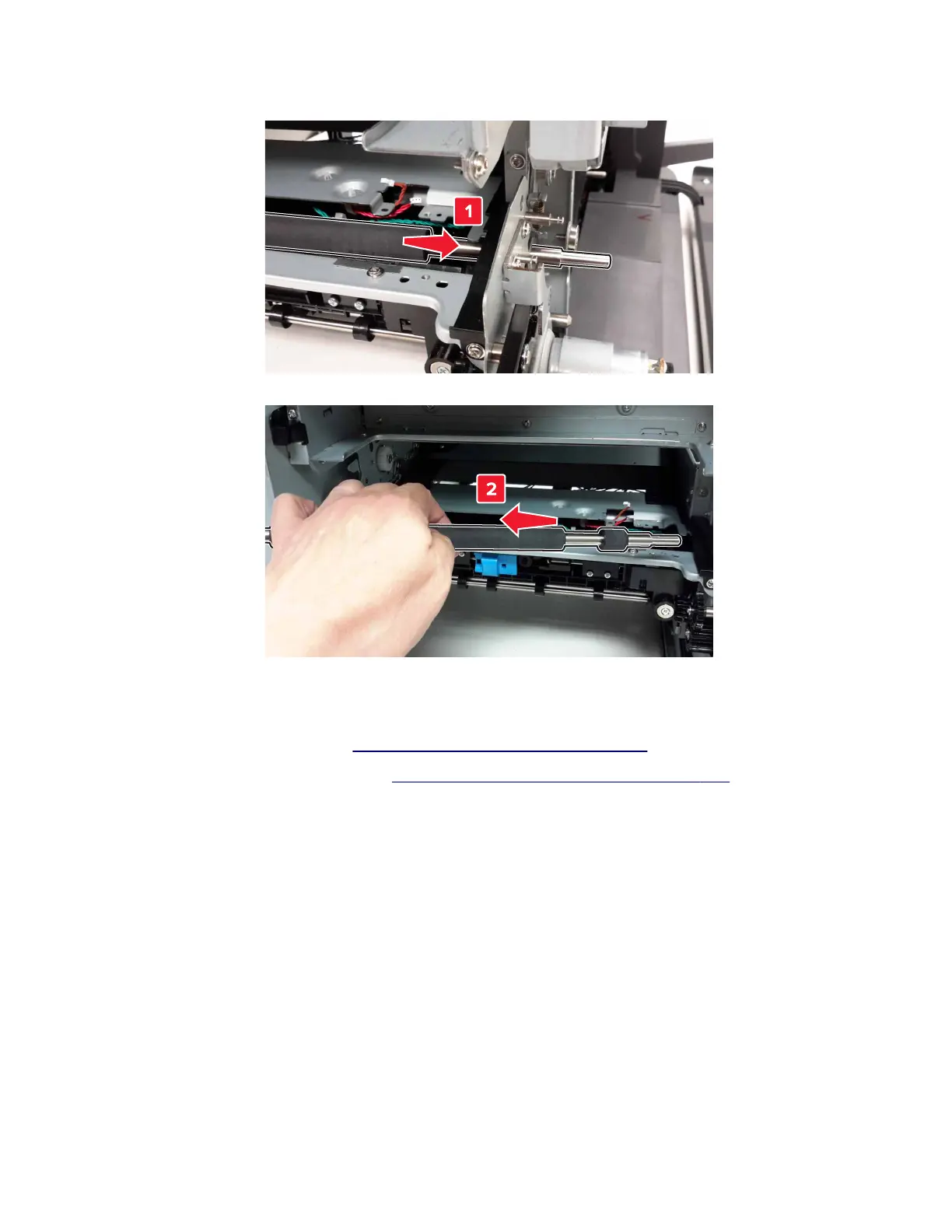

20 Slide the rear deskew roller to the right to remove.

Diverter removal

1 Remove the top frame cover. See “Top frame cover removal” on page 331.

2 Remove the top frame base cover. See “Top frame base cover removal” on page 333.

7528

Repair information

404
