Lexmark XC4150 - Pivot Shaft Removal

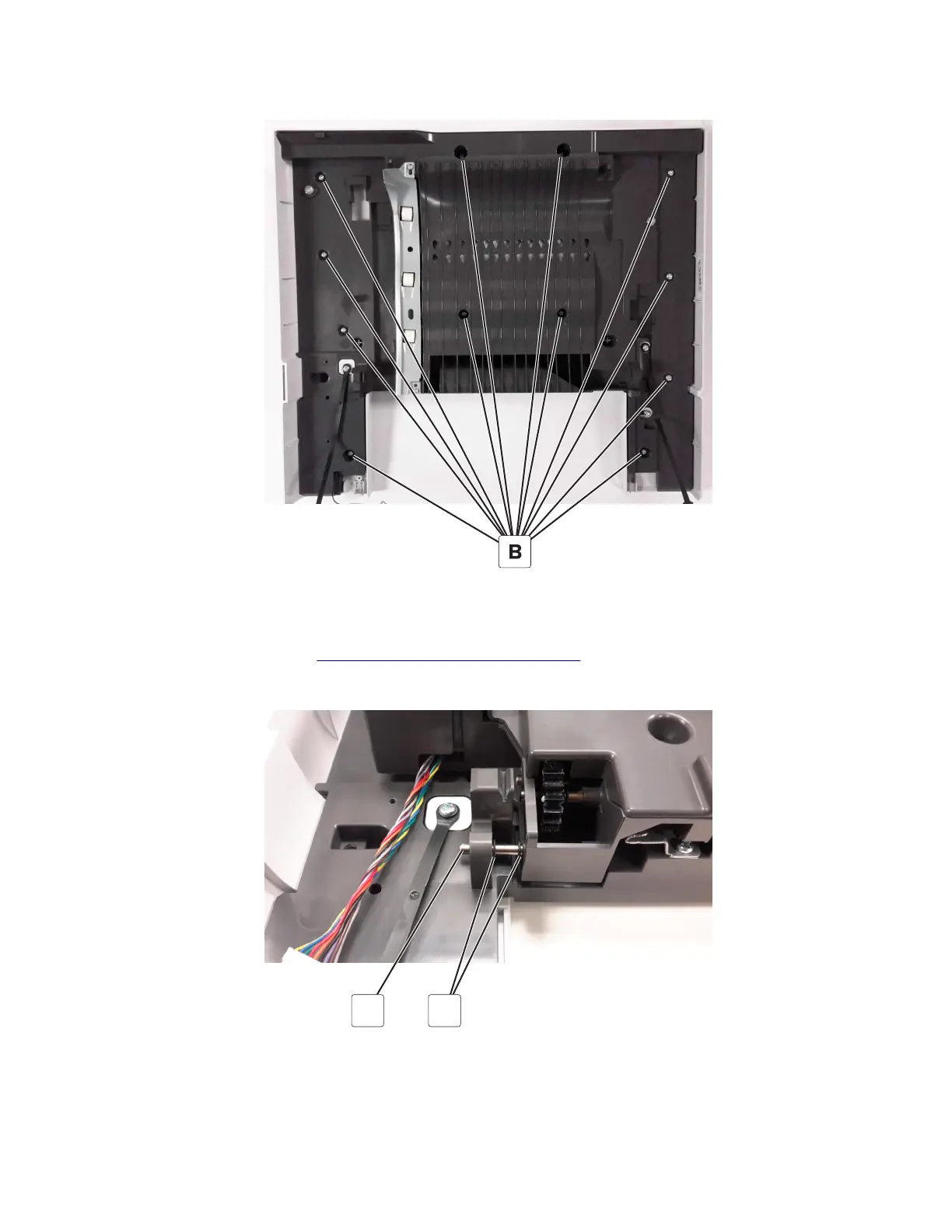

5 Remove the 12 screws (B), and then remove the duplex outer guide.
Pivot shaft removal
1 Remove the front cover. See “Front cover removal” on page 309.
2 Remove the two E-clips (A), and then remove the shaft (B).
AB
7528
Repair information
345
