Toner door mount bracket removal

1 Remove the toner door. See “Toner door removal” on page 322.

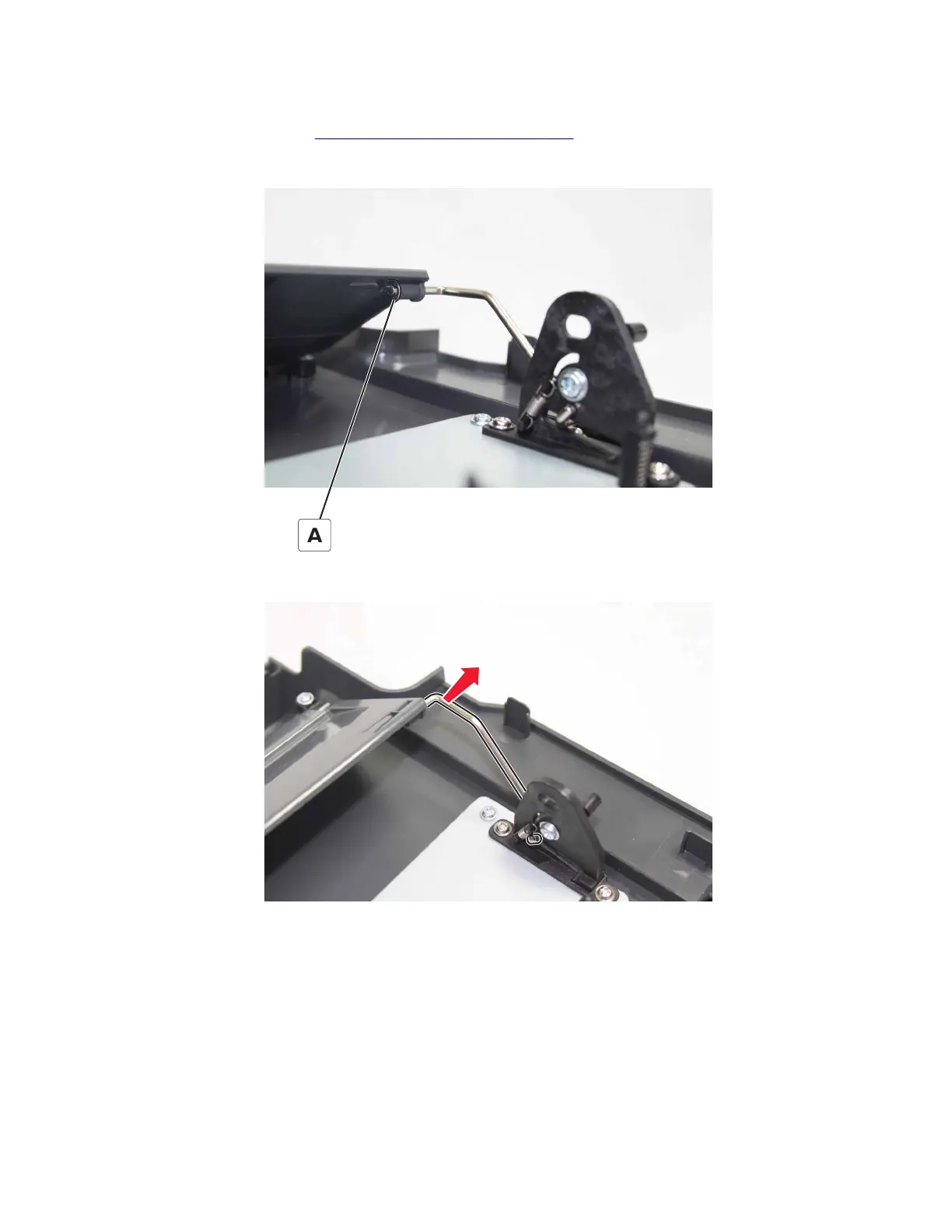

2 Remove the E-clip (A).

3 Slide the retainer out of the hole.

7528

Repair information

324
