Power cable removal
1 Remove the left cover. See “Left cover removal” on page 316.
2 Disconnect the power cable from the LVPS.

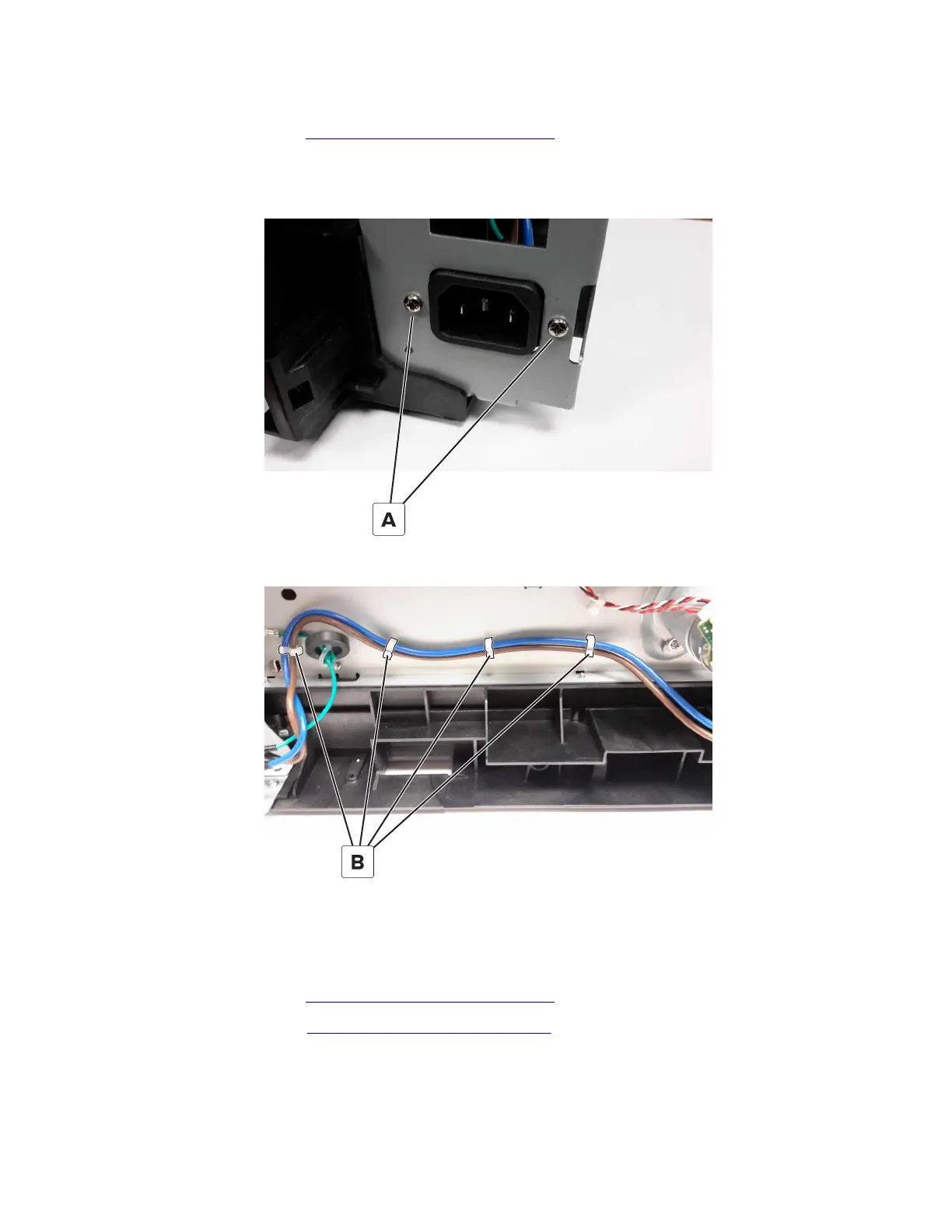

3 Remove the two screws (A).
4 Remove the cable from the cable ties (B).
5 Disconnect the cable from the LVPS.
Motor (output) removal
1 Remove the left cover. See “Left cover removal” on page 316.
2 Remove the top cover. See “Top cover removal” on page 311.
