Facade removal

1 Remove the

ﬂatbed.

See “Flatbed removal” on page 435.

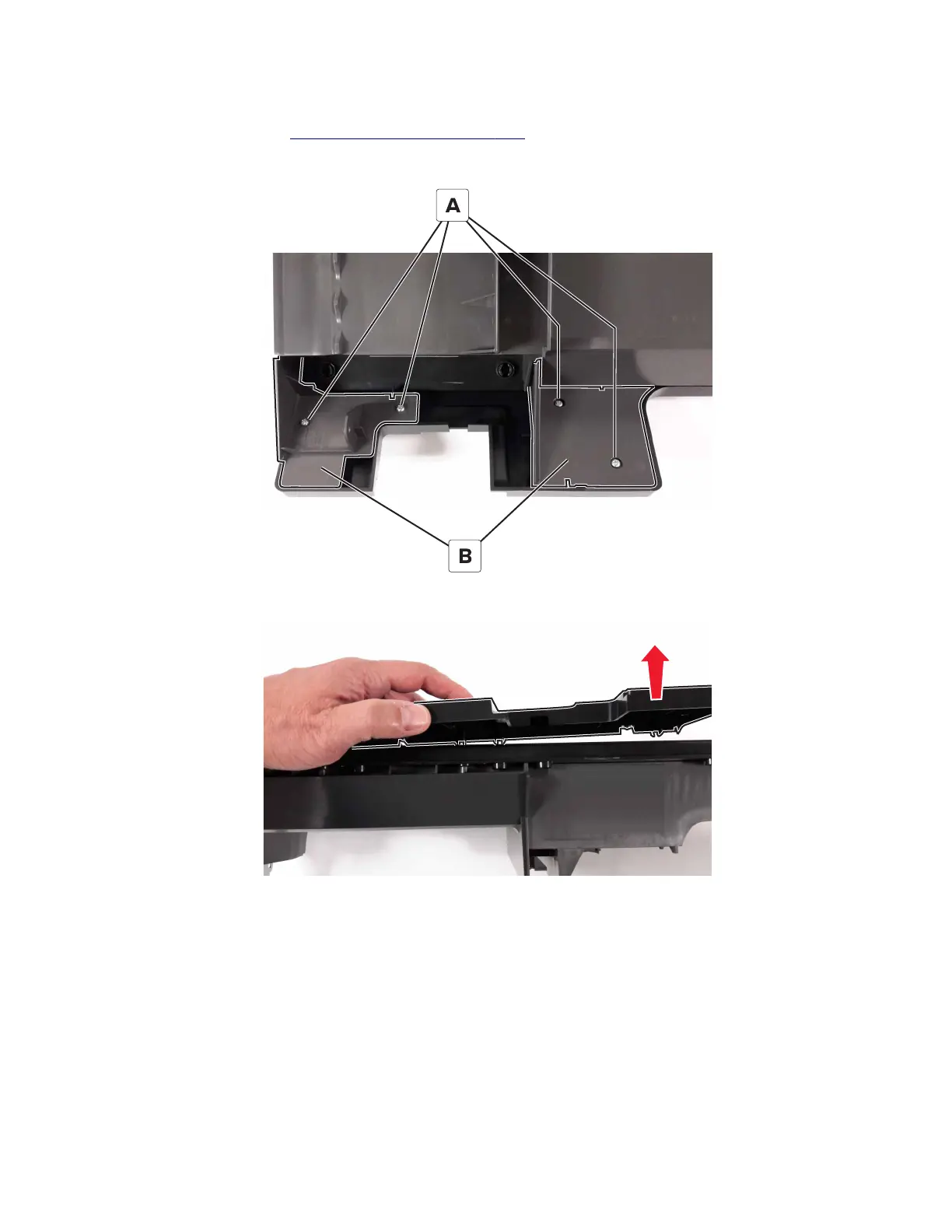

2 Remove the four screws (A), and then remove the supports (B).

3 Pull the facade from the ﬂatbed to remove.
