Lexmark XC4150 - Transfer Module Removal

To Next Page

To Previous Page

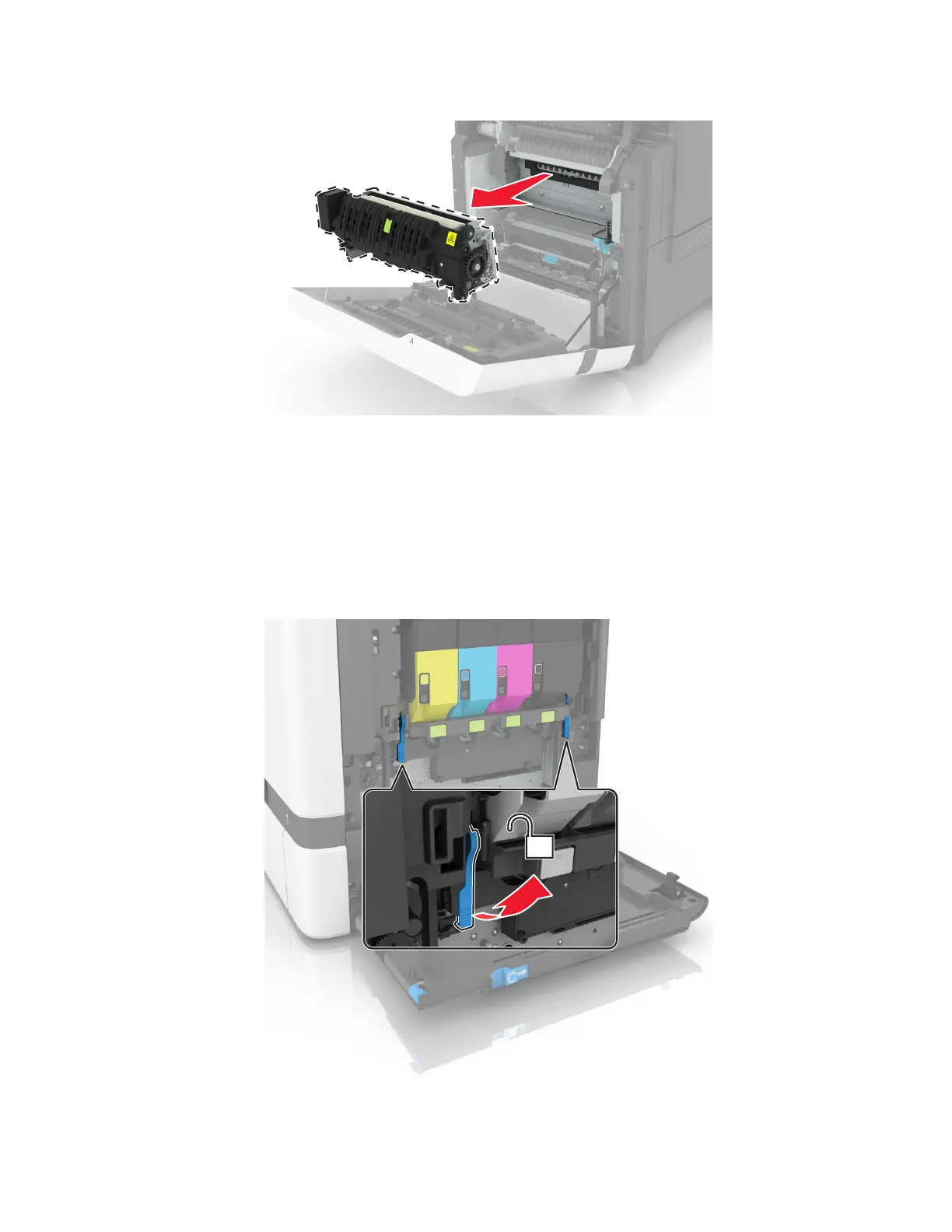

4 Remove the fuser.

Transfer module removal

1 Open the toner door.

2 Open the imaging unit cover.

3 Remove the waste toner bottle.

4 Unlock the transfer module.

7528

Repair information

388
