Lexmark XC4150 - Output Roll Removal

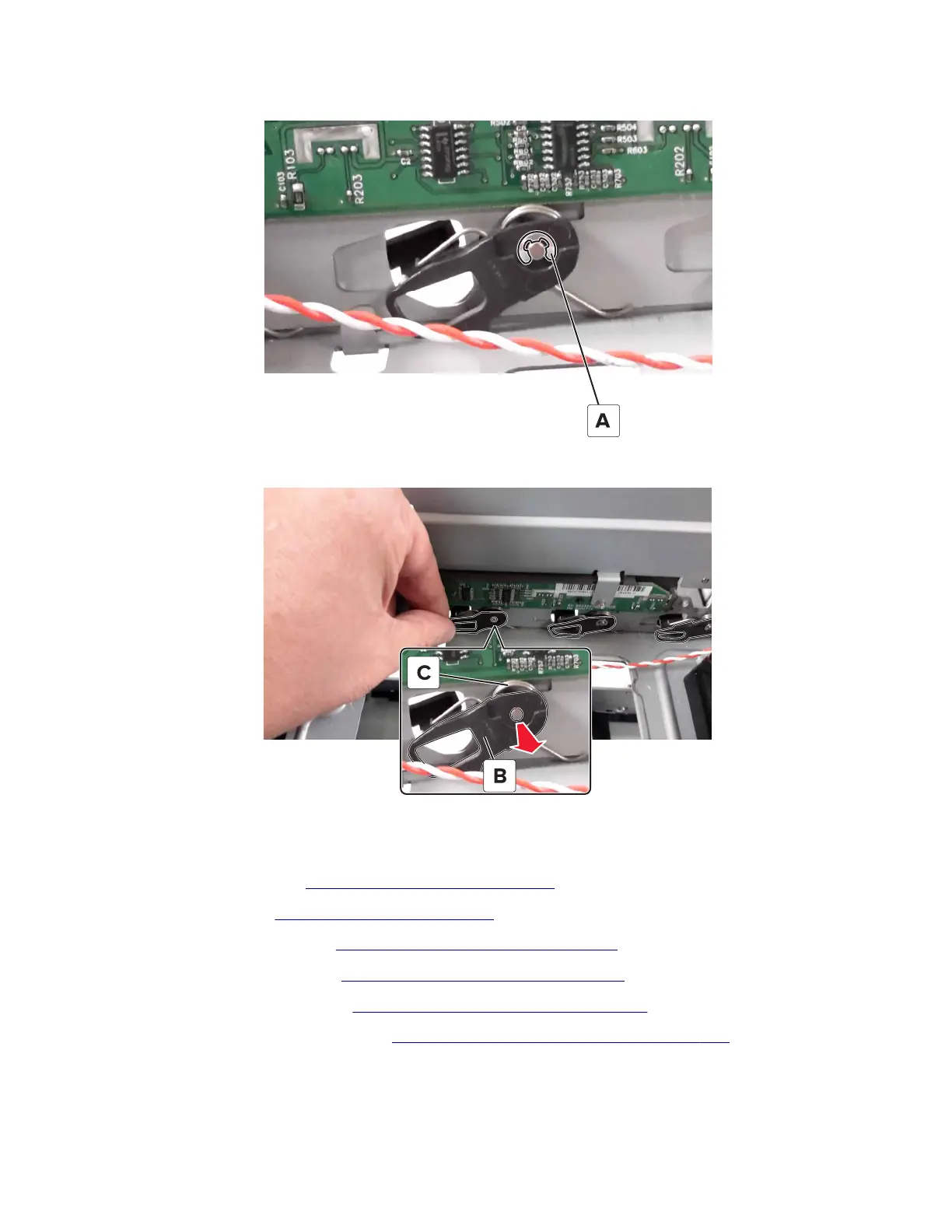

4 Remove the E‑clip (A).
5 Pull the bell crank (B) and spring (C)
o
the mounting pin, and then remove the developer hold down.
Output roll removal
1 Remove the left cover. See “Left cover removal” on page 316.
2 Remove the fuser. See “Fuser removal” on page 387.
3 Remove the redrive guide. See “Redrive guide removal” on page 406.
4 Remove the motor (output). See “Motor (output) removal” on page 351.
5 Remove the top frame cover. See “Top frame cover removal” on page 331.
6 Remove the top frame base cover. See “Top frame base cover removal” on page 333.
7528
Repair information
416
