Lexmark XC4150 - Sheet Tray Controller Board Assembly Removal

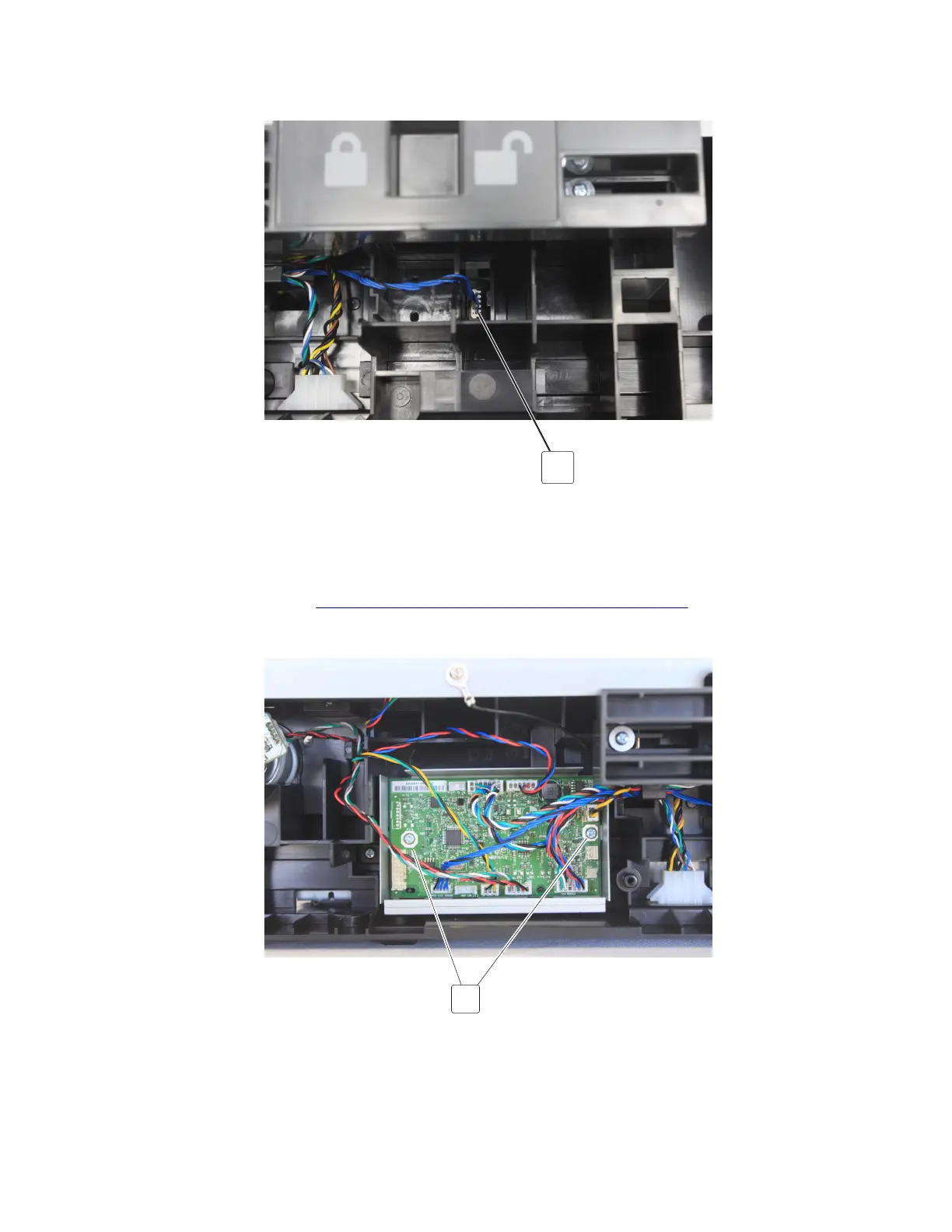

5 Disconnect the cable (C), and then remove the sensor.
C
550-sheet tray controller board assembly removal
1 Remove the tray insert.
2 Remove the right cover. See “550-sheet tray right cover removal” on page 444.
3 Disconnect all cables from the assembly, and then remove the two screws (A).
A
4 Remove the controller board assembly.
7528
Repair information
451
