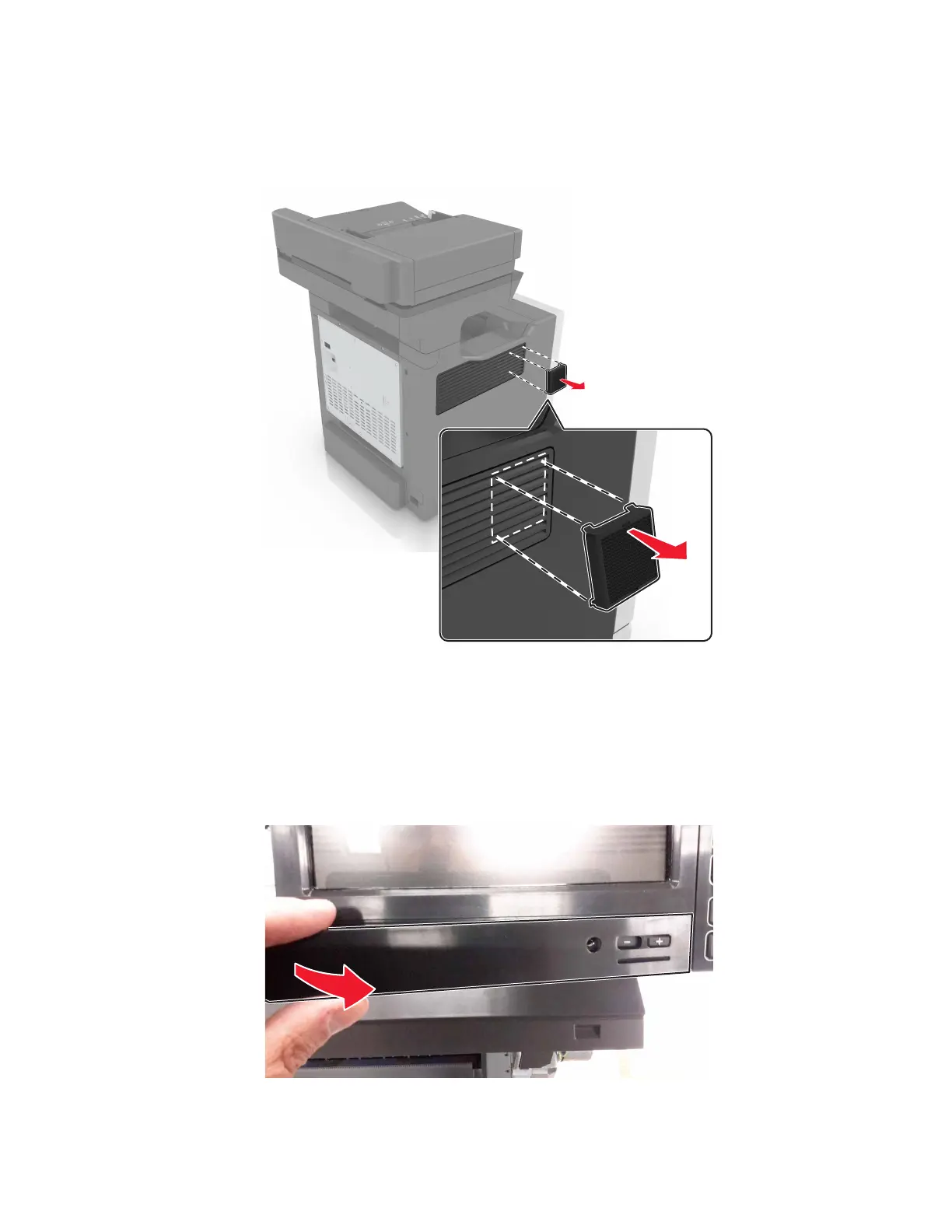

External air ﬁlter removal

1 Firmly hold the air

ﬁlter.

2 Pull the air ﬁlter to remove.

Control panel removals

Lower control panel bezel removal

1 Carefully pull the bezel to disengage it.

2 Remove the bezel.

7528

Repair information

336
