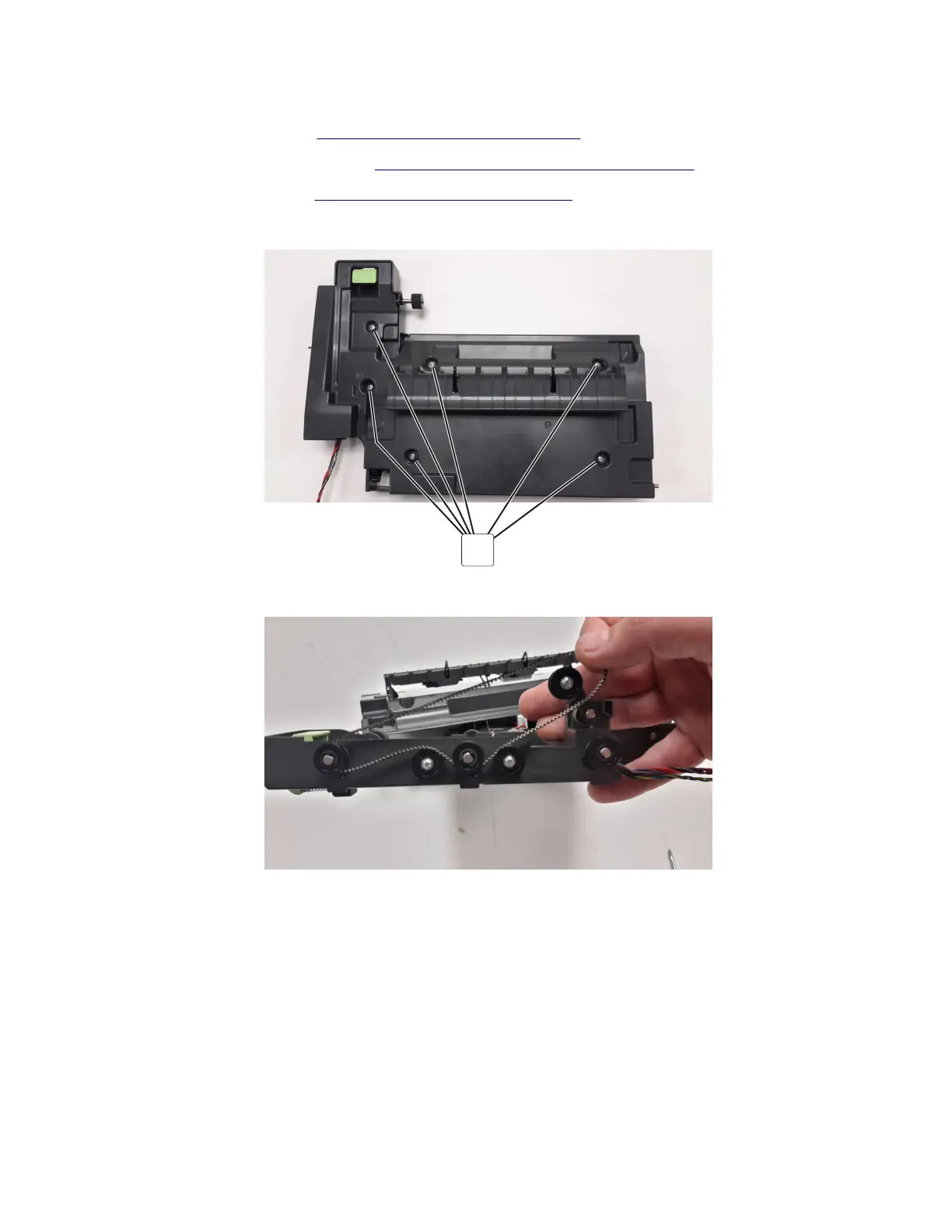

Tensioner belt removal
1 Remove the front cover. See “Front cover removal” on page 309.
2 Remove the duplex inner guide. See “Duplex inner guide removal” on page 343.
3 Remove the pivot shaft. See “Pivot shaft removal” on page 345.
4 Remove the six screws (A), and then remove the cover.
A
5 Remove the belt.
Note: Pay attention to the belt path before removing the belt.
7528
Repair information
346
