Sensor (550-sheet tray empty) removal

1 Remove the tray insert.

2 Remove the paper feeder. See “550-sheet tray right cover removal” on page 444.

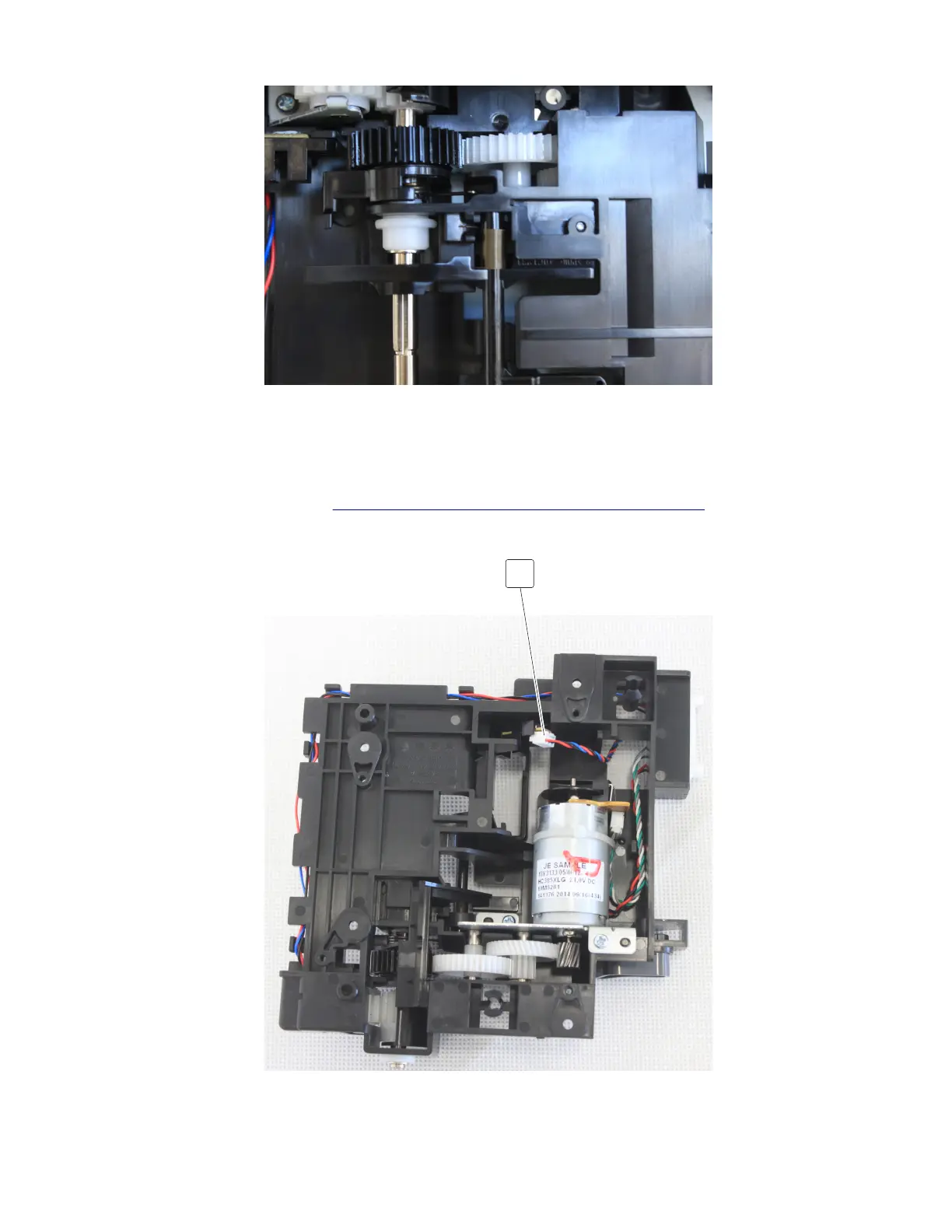

3 Disconnect the cable (A), and then remove the sensor.

7528

Repair information
