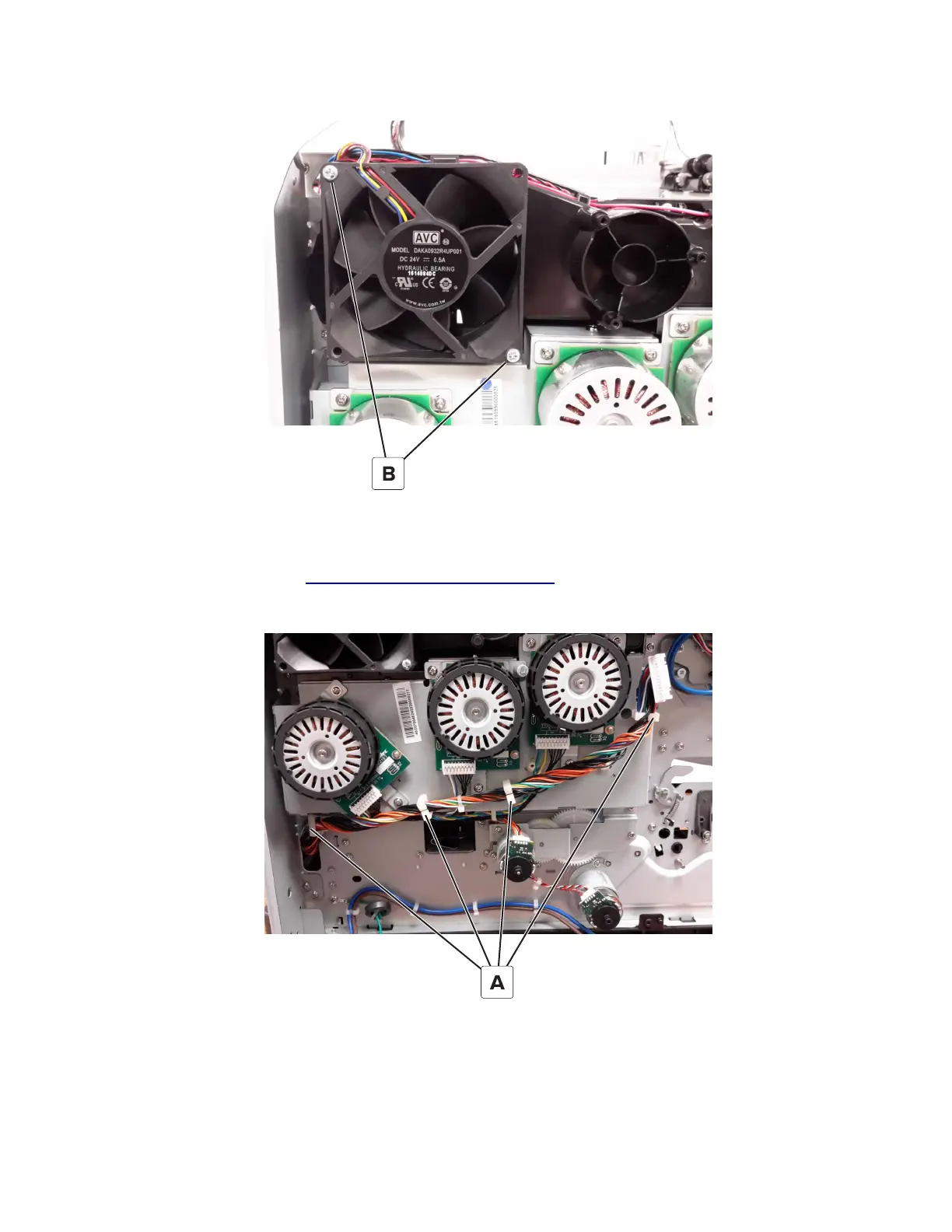

5 Remove the two screws (B), and then route the fan cable through the hole in the frame to remove the fan.

EP gear box removal

1 Remove the left cover. See “Left cover removal” on page 316.

2 Route the cable out of the guides (A).

7528

Repair information

356
