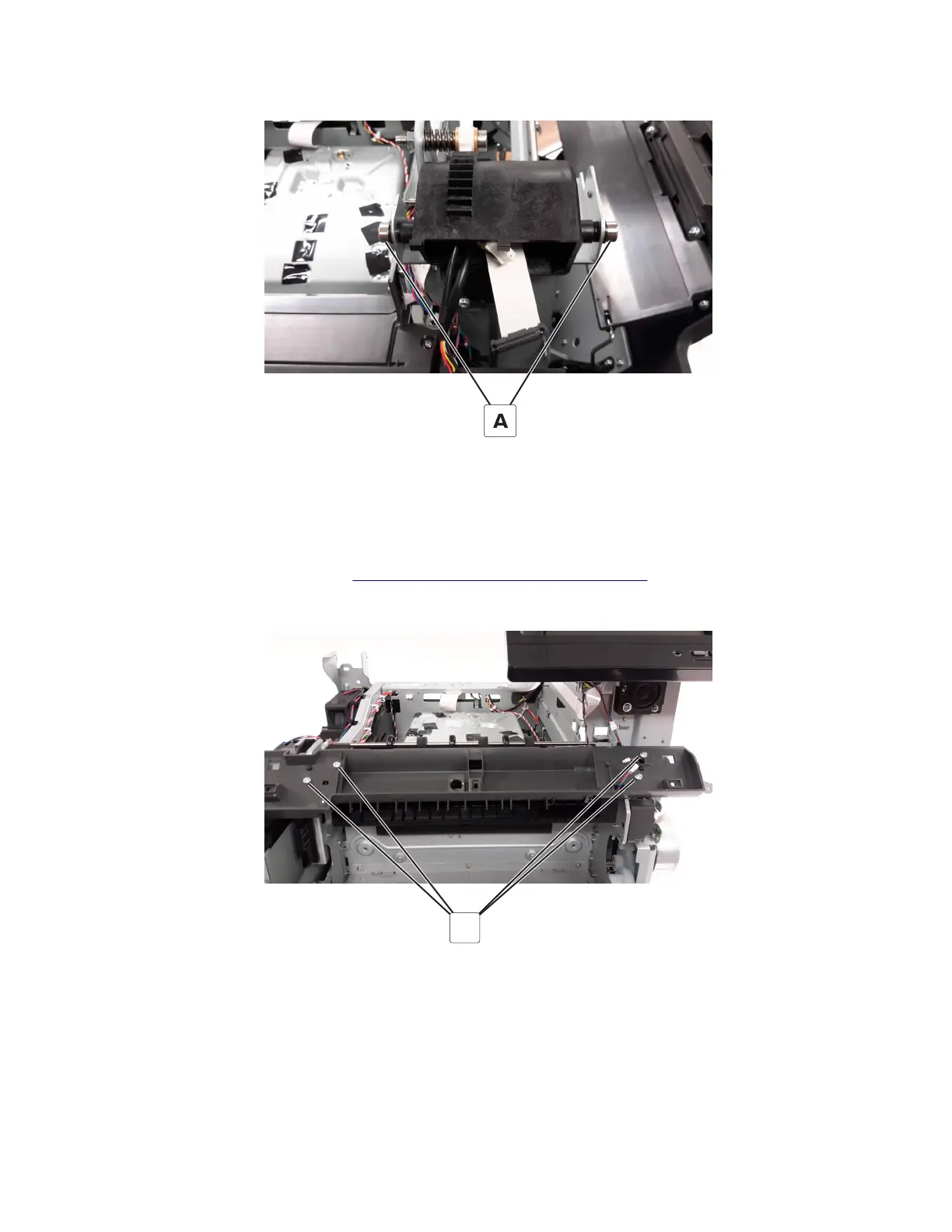

5 Remove the two shoulder screws (A), and then remove the mounting bracket.
Control panel arms removal
Note: The control panel arms are two separate FRUs. This procedure shows how to remove the left and right
arms.
1 Remove the top frame cover. See “Top frame cover removal” on page 331.
2 Remove the four screws (A).
A
7528
Repair information
340
