Lexmark XC4150 - Transfer Module Guide Rail Removal

Transfer module guide rail removal

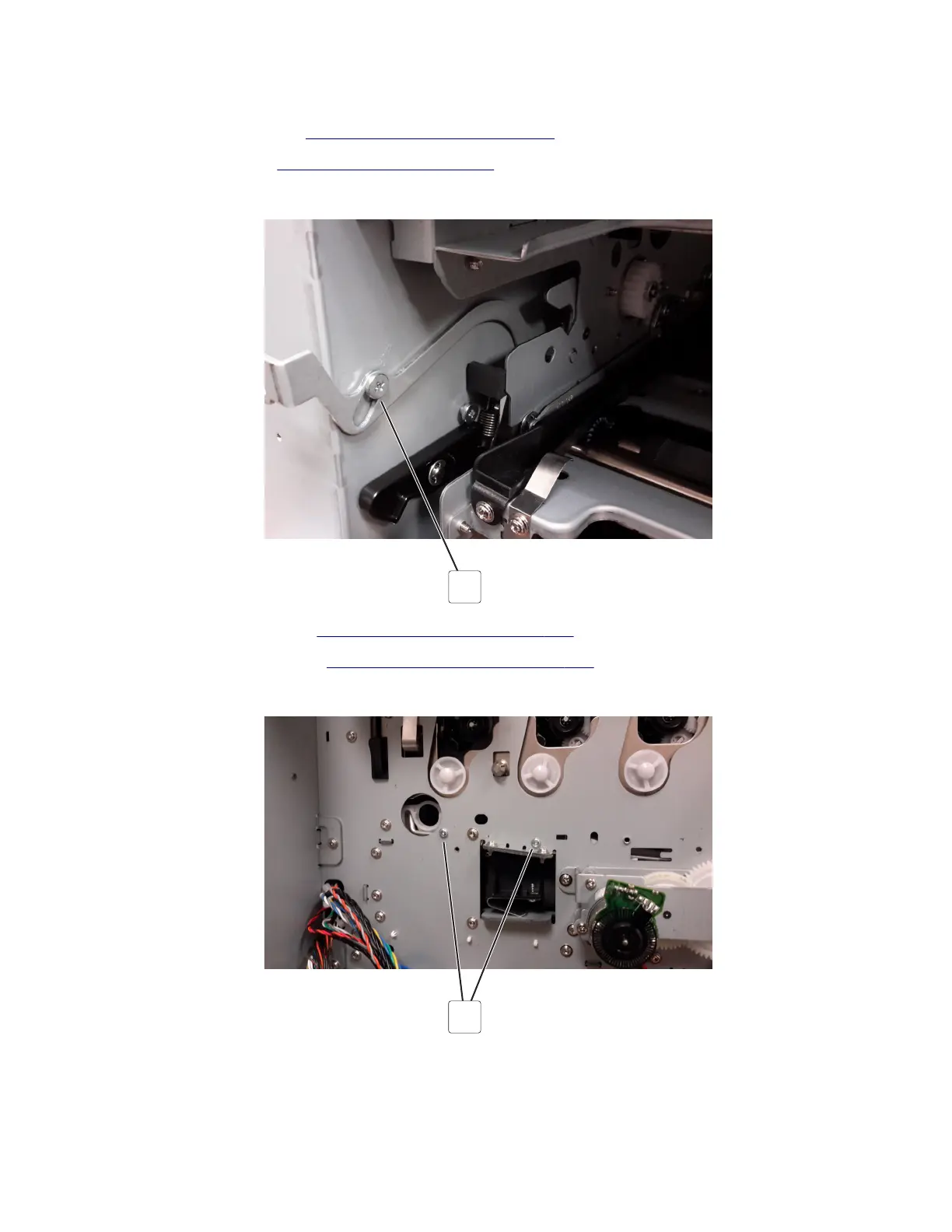

1 Remove the left cover. See “Left cover removal” on page 316.
2 Remove the LVPS. See “LVPS removal” on page 359.
3 Remove the screw (A).
A
4 Remove the LVPS cage. See “LVPS cage removal” on page 362.
5 Remove the EP gear box. See “EP gear box removal” on page 356.
6 Remove the two screws (B).
B
