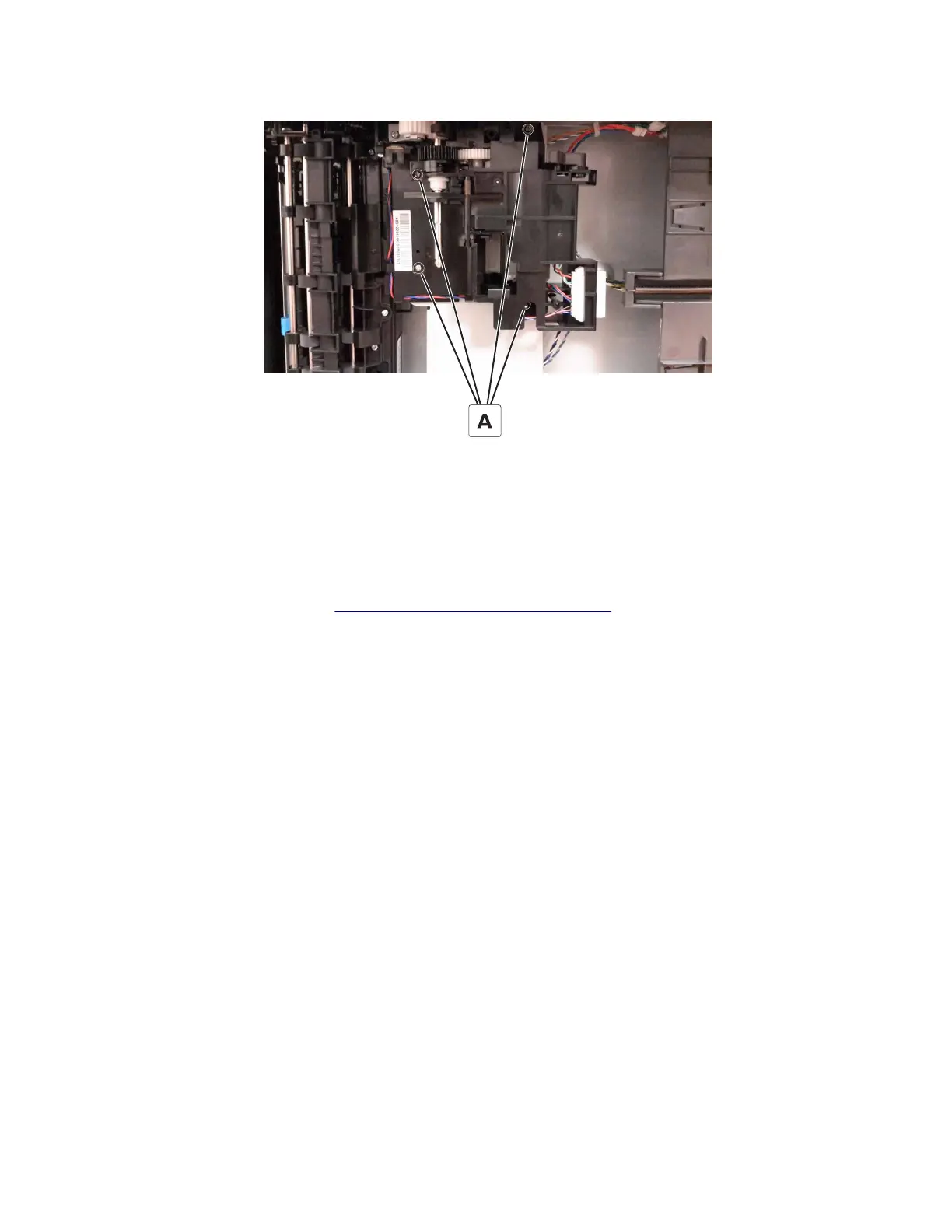

4 Remove the four screws (A), and then remove the media feeder.
Isolation unit removal
Warning—Potential Damage: Remove the waste toner bottle and imaging kit
first
before removing the
isolation unit. Failure to do this can lead to toner spillage and damage to the printer.
1 Remove the imaging unit.
2 Remove the media feeder. See “Media feeder removal” on page 422.
7528
Repair information
423
