Toner door mount frame removal

1 Remove toner door. See “Toner door removal” on page 322.

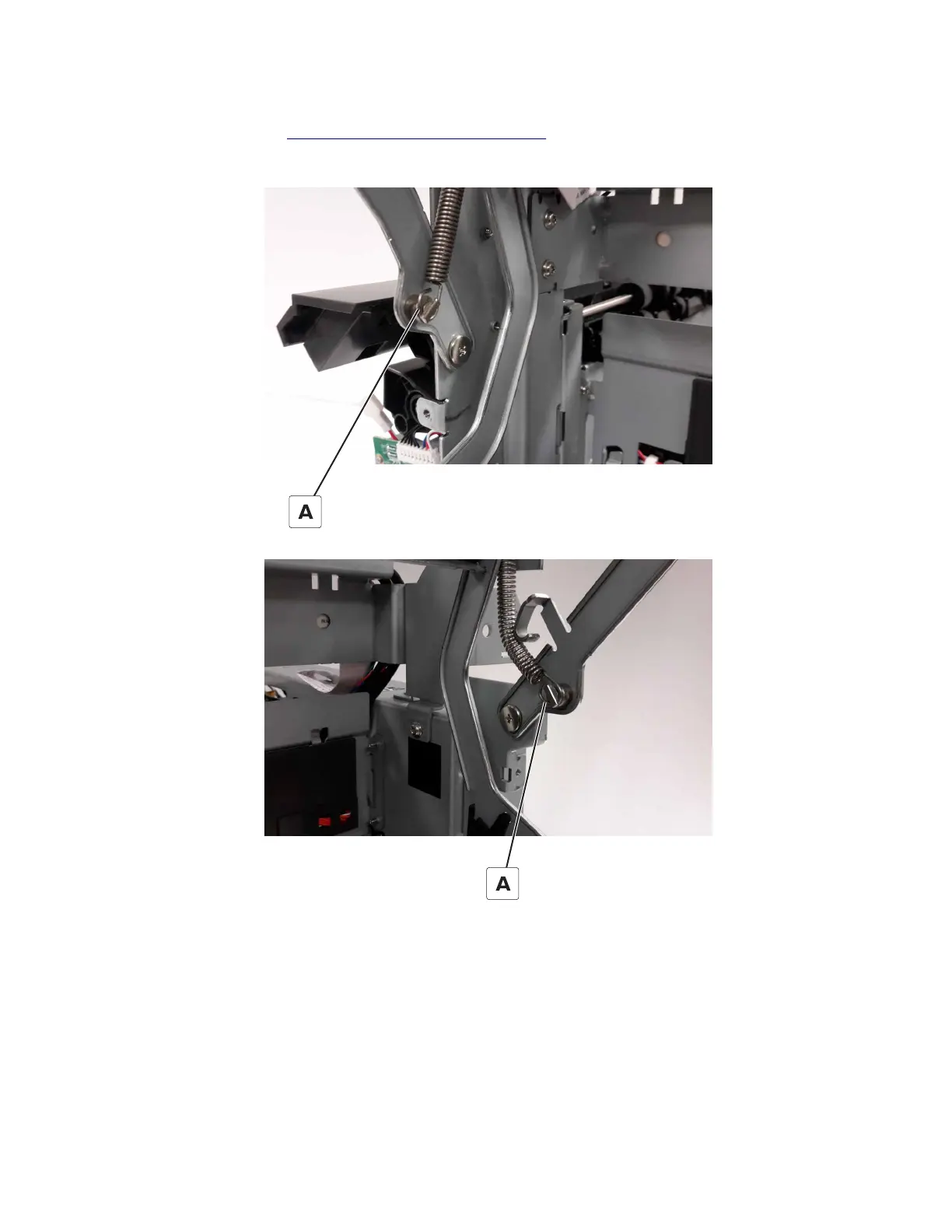

2 Raise the front and rear toner door arms, and then unhook the two springs (A).

7528

Repair information

326
