Scanner front cover removal

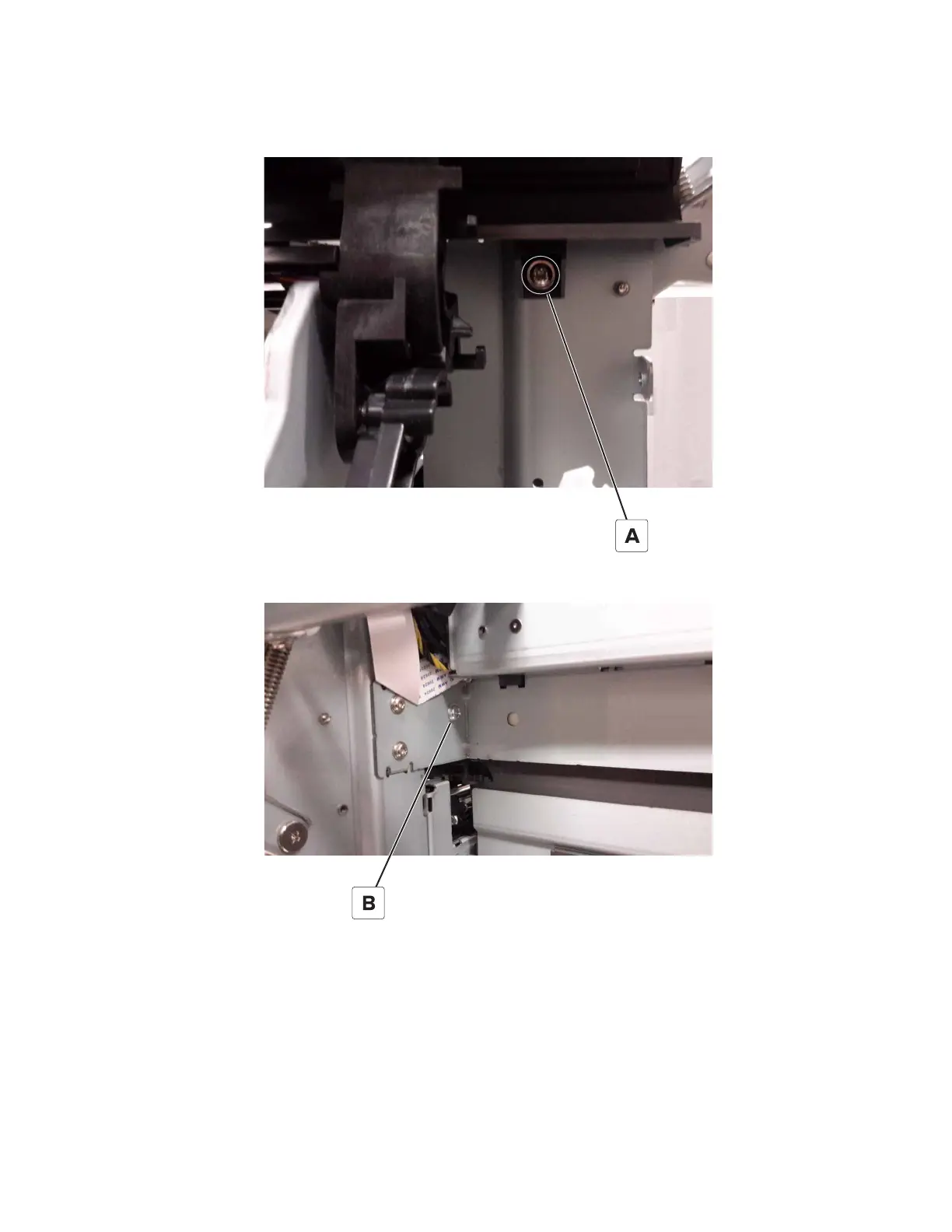

1 Remove the screw (A) on the front.

2 Remove the screw (B) from inside the toner cartridge area.

3 Remove the cover.

7528

Repair information

434
