Lexmark XC4150 - Duplex Outer Guide Removal

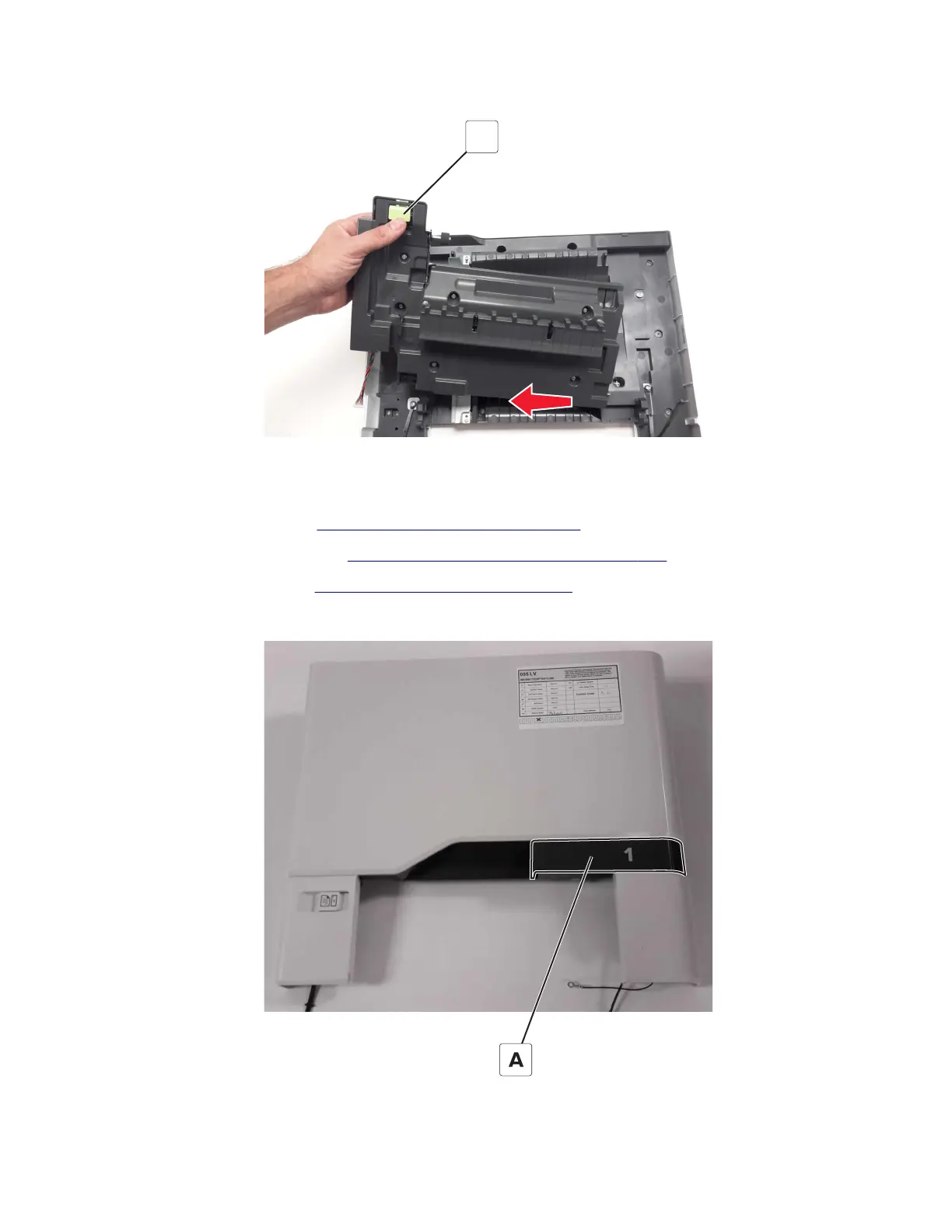

3 Release the latch (A), and then slide the guide to remove.
A
Duplex outer guide removal
1 Remove the front cover. See “Front cover removal” on page 309.
2 Remove duplex inner guide. See “Duplex inner guide removal” on page 343.
3 Remove the pivot shaft. See “Pivot shaft removal” on page 345.
4 Remove the tray indicator (A).
7528
