550-sheet tray interface cable removal
1 Remove the tray insert.
2 Remove the right cover. See “550-sheet tray right cover removal” on page 444.

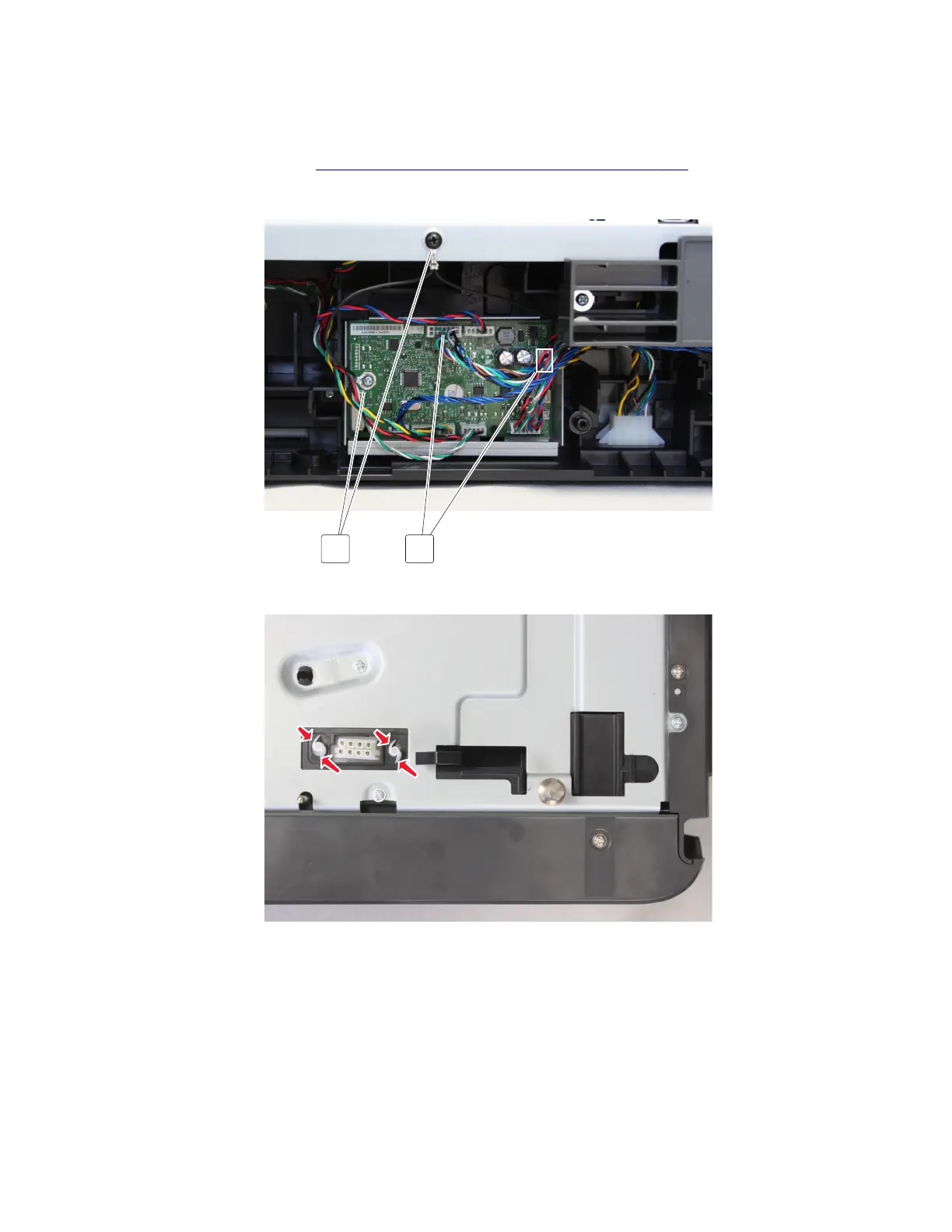

3 Disconnect the two cables (A), and then remove the screws (B).
AB
4 Squeeze, and then push the latches into the tray base to release the cable.
7528
Repair information
452
