Lexmark XC4150 - ADF Right Hinge Removal

4 Remove the four screws (A), and then remove the hinge.
ADF right hinge removal
1 Remove the controller board shield. See “Controller board shield removal” on page 408.
2 Remove the inner controller board shield. See “Inner controller board shield removal” on page 409.
3 Remove the ADF. See “ADF removal” on page 426.

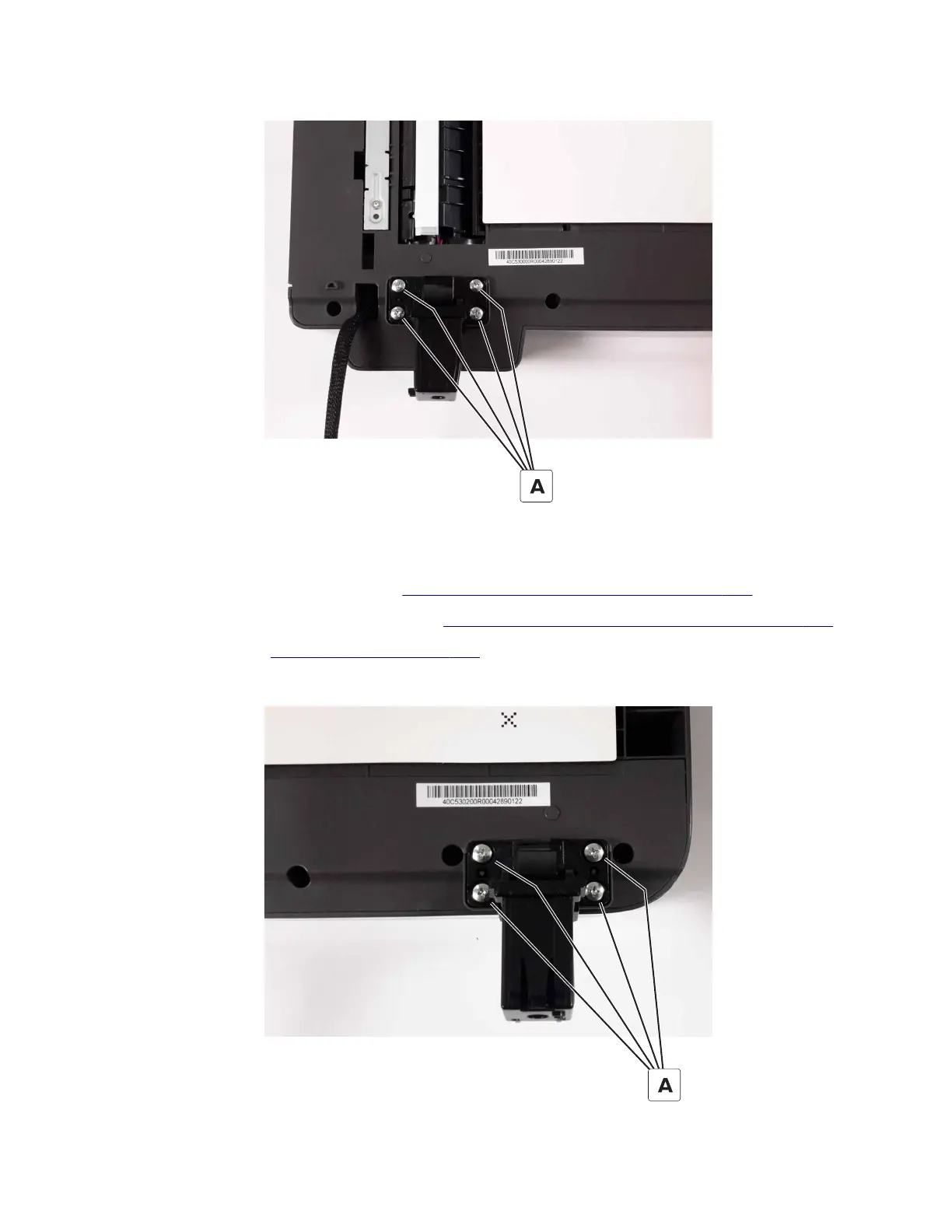

4 Remove the four screws (A), and then remove the hinge.
7528
Repair information
433
