Top frame base cover removal

1 Remove the top frame cover. See “Top frame cover removal” on page 331.

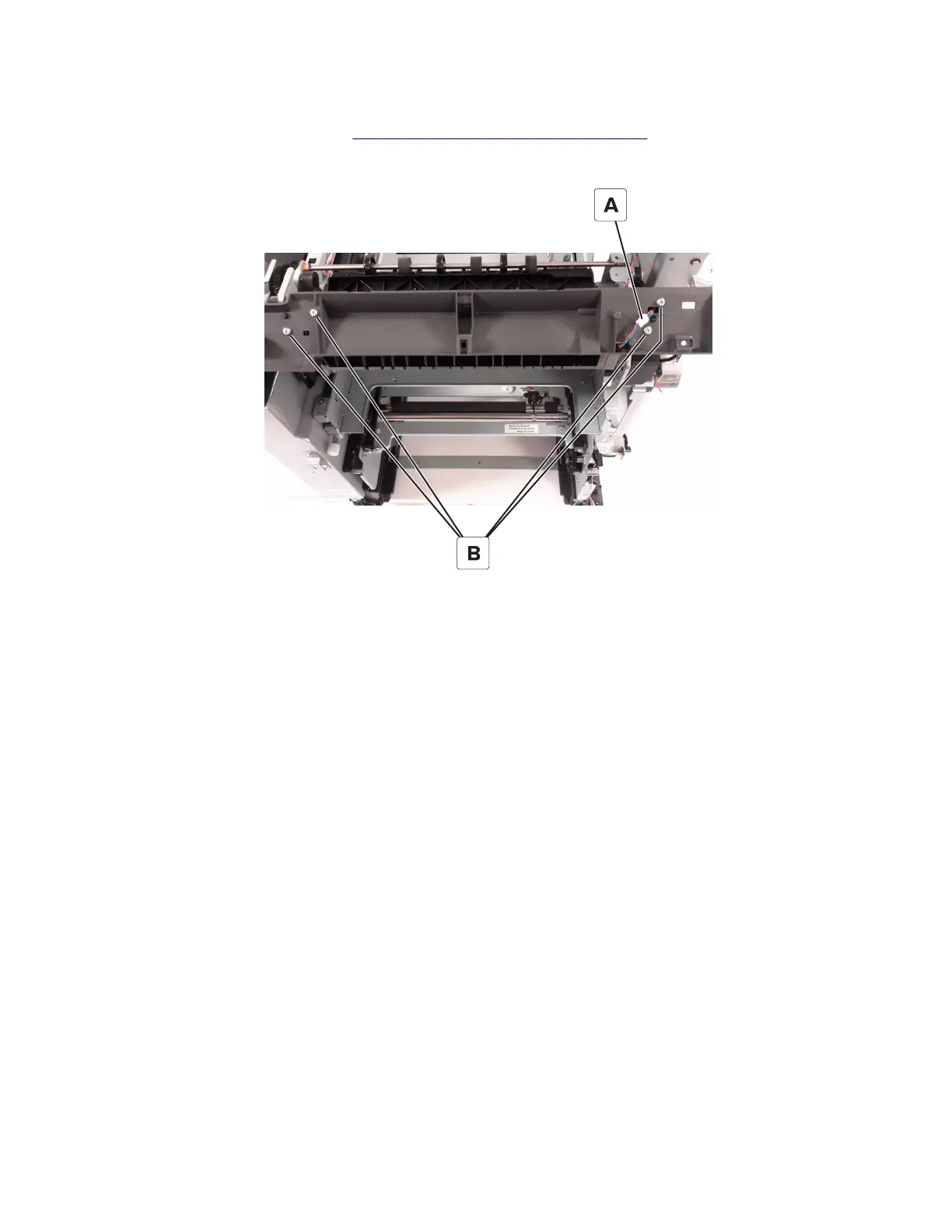

2 Disconnect the redrive sensor cable (A), remove the four screws (B), and then remove the cover.

7528

Repair information

333
