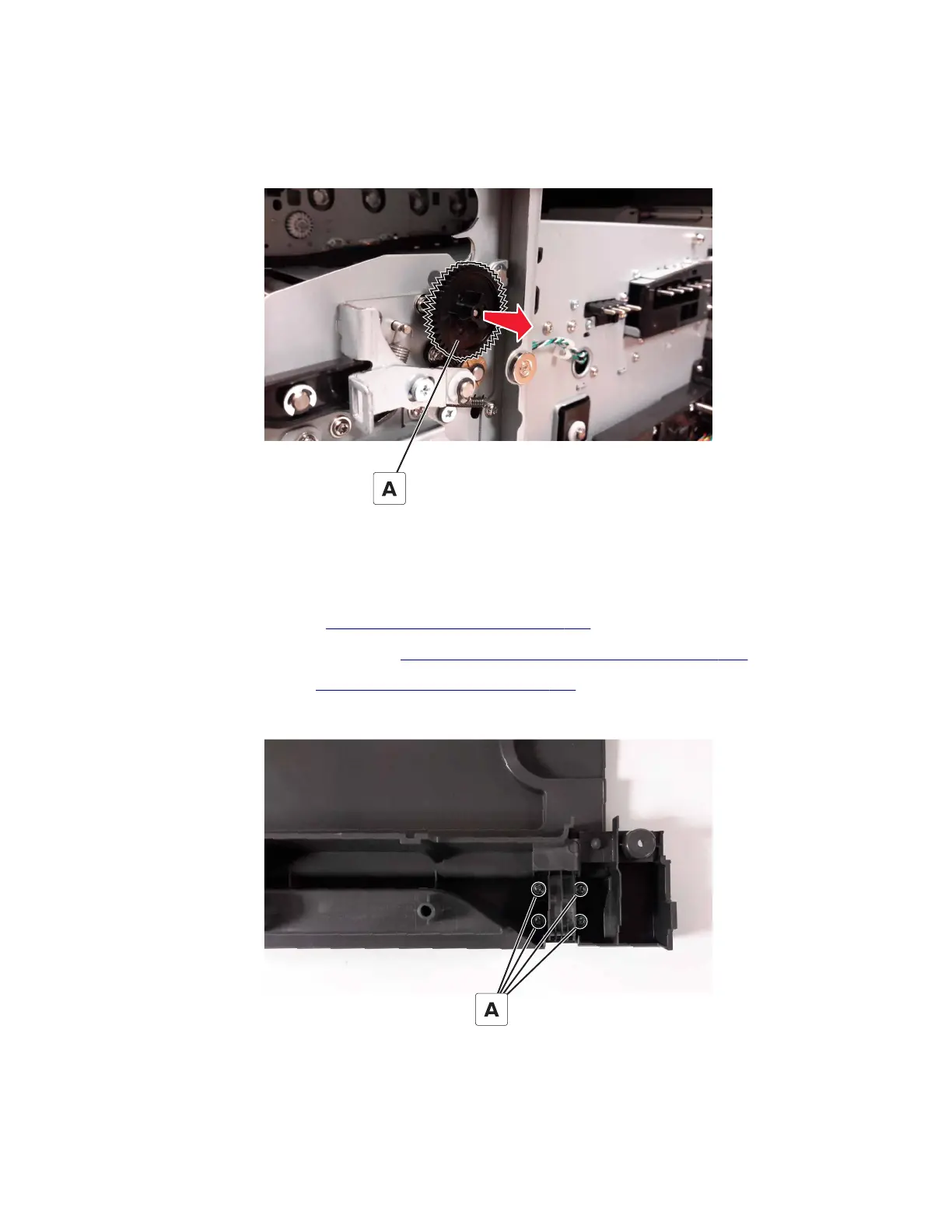

Waste toner bottle idler gear removal
1 Remove the waste toner bottle.
2 Remove the gear.
Imaging unit cover removal
1 Remove the waste toner bottle.
2 Remove the motor cover. See “Motor cover removal” on page 319.
3 Remove the scanner rear left cover. See “Scanner rear left cover removal” on page 335.
4 Remove the right cover. See “Right cover removal” on page 318.
5 Remove the four screws (A) securing the imaging unit cover hinges to the front of the right cover.
