Lexmark XC4150 - Control Panel Tub Removal

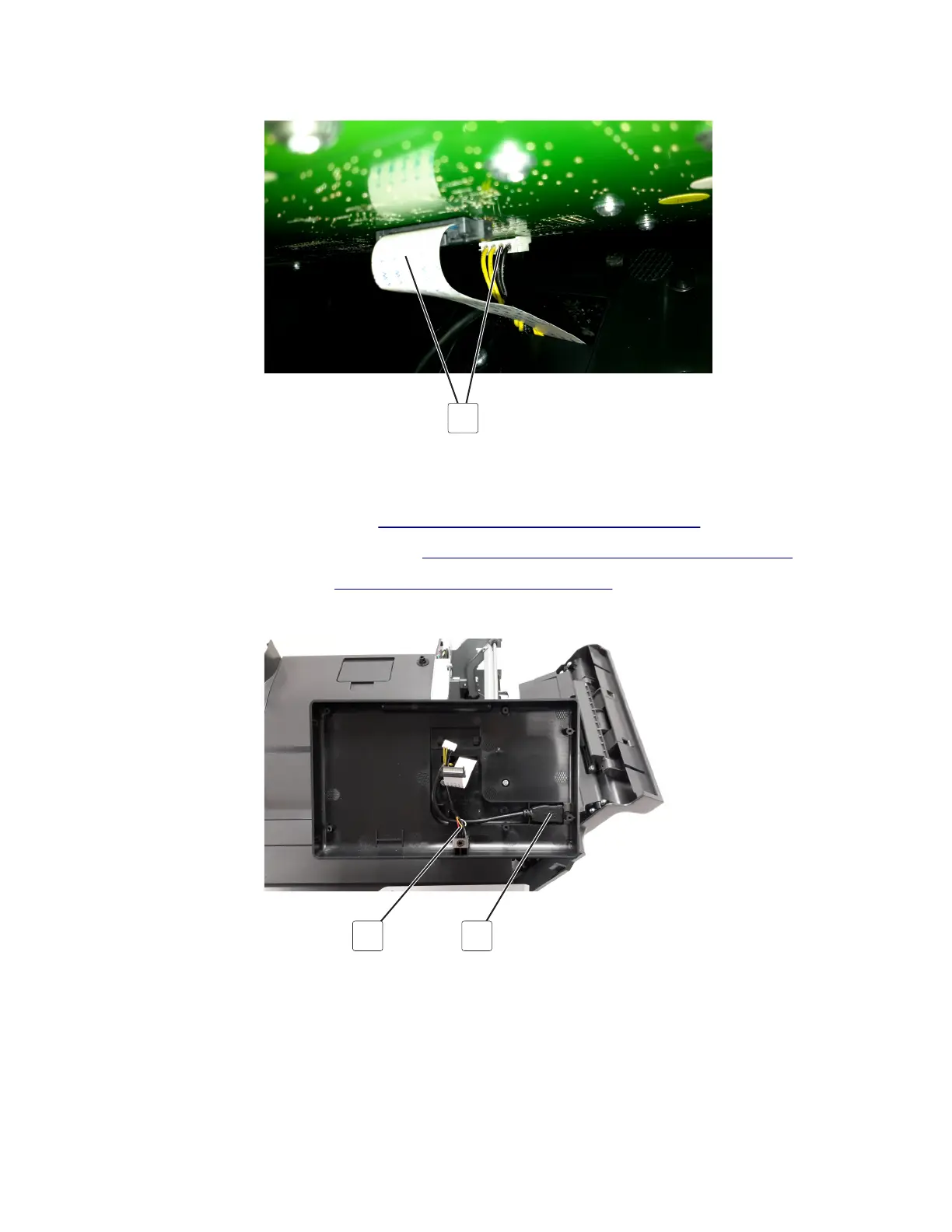

4 Disconnect the two control panel cables (B) from the control panel board, and then remove the control panel.
B
Control panel tub removal
1 Remove the control panel bezel. See “Control panel bezel removal” on page 337.
2 Remove the lower control panel bezel. See “Lower control panel bezel removal” on page 336.
3 Remove the control panel. See “Control panel removal” on page 337.
4 Unfasten the USB (A) and headphone (B) cables.
B A
