Hardware Configurations
The LU600 has several optional hardware configurations and accessories including different
video interface cards, camera-mount configurations and external antenna for specific
connectivity scenarios.
Video Interface Cards
The base LU600 comes with the HEVC-HD video interface card that supports HD video input
via either SDI or HDMI connectors. This card supports the following video connections:
3G/HD/SD-SDI and HDMI 1.4.
LiveU can also supply optional alternative video interface cards for the provision of 4K video
as follows:
4K-SDI
This card supports SDI 4K input and SDI HD input. The card supports the following video
connections: 12G/3G/HD/SD-SDI 4x3G-SDI (2SI + SD), supporting all formats of 4x3G-
SDI – 2 sample interleave or square division, level A or level B. Please note that this card
does not support any HDMI input.

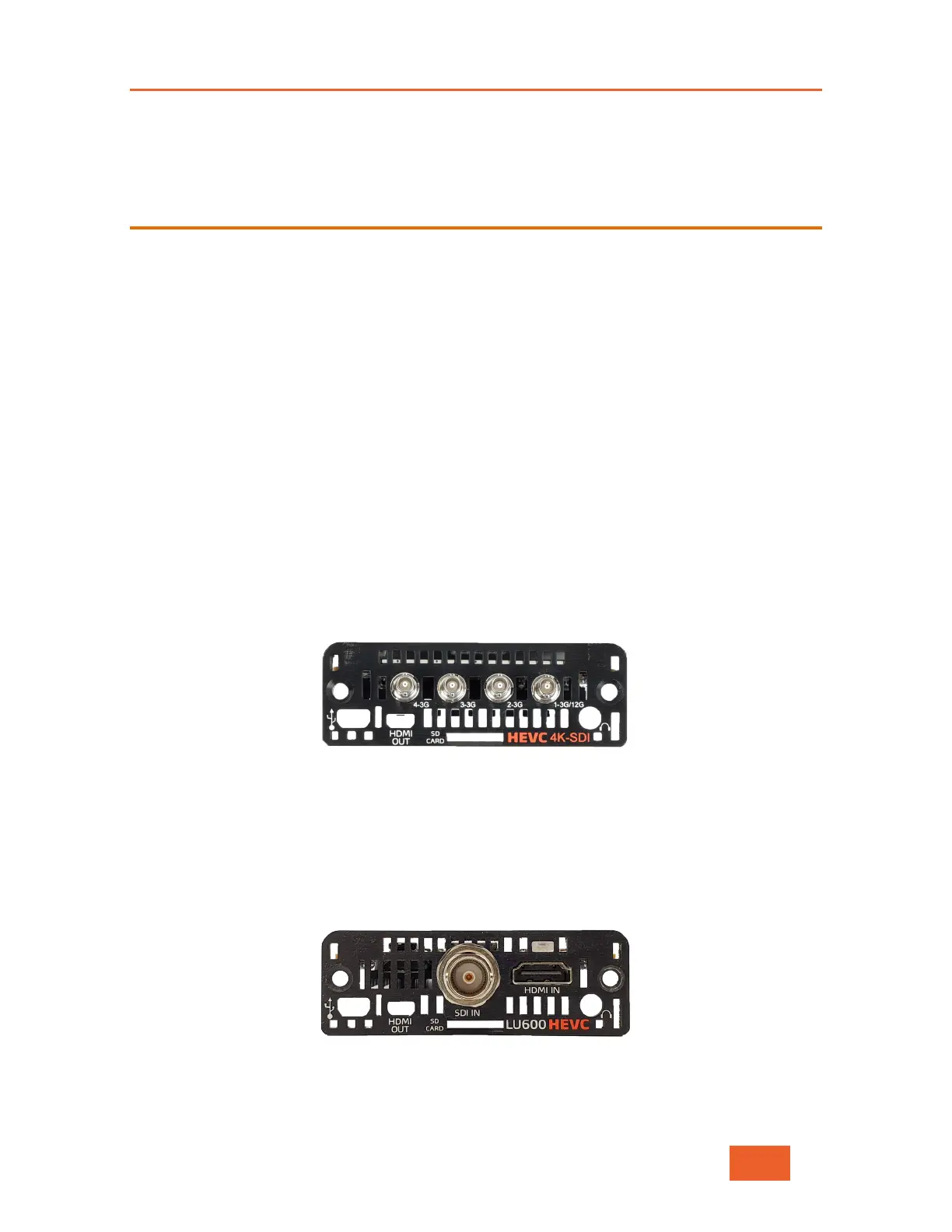

Figure 3: 4K SDI Video Interface Card panel
4K-HDMI
This card allows either 4K HDMI input or SDI HD input, supporting the following
connections: 3G/HD/SD-SDI, HDMI 2.0.
Figure 4: HEVC-HD Video Interface Card panel
