Introducing the LU600 LiveU LU600 User Guide

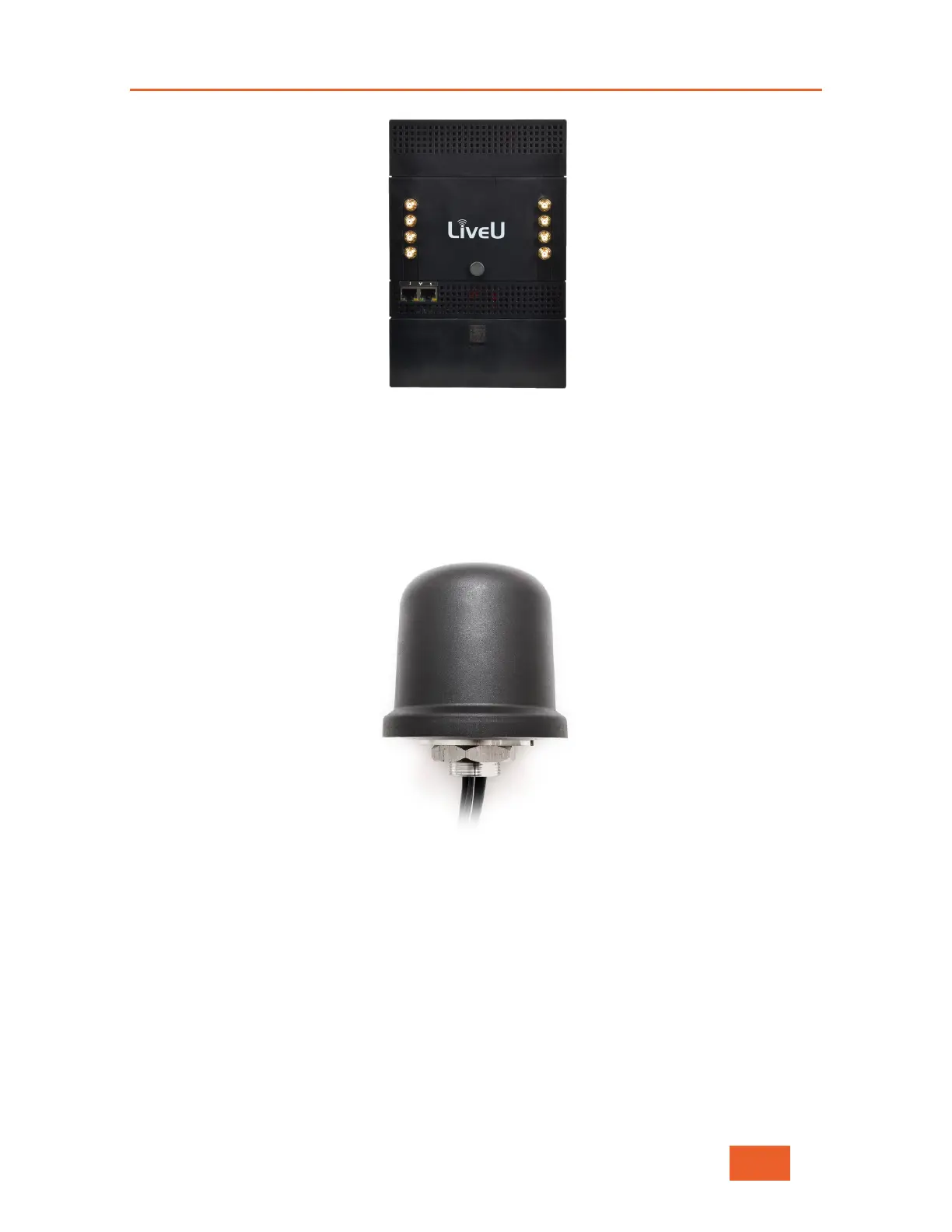

Figure 6: LU600-SMA
External Antenna Accessory
As part of the accessories available for the LU600, LiveU offers external cellular antennas
(part number ANT0026) that were tested and found to be highly compatible with the
LU600.
Figure 7: External Cellular Antenna (ANT00026)
These antennae have the following advantages:
• Hi-Performance Antennas (-3dBi)
• Each antenna has 2 internal cellular antenna and can be connected to two different
cellular modules on the LU600-SMA.
We recommend placing the antennas at least 20cm from each other when connecting
multiple antennas to the LU600.
The antenna has a 3-meter cable with an SMA connector that can be extended, however we
do not recommend extension as this may affect antenna performance.
