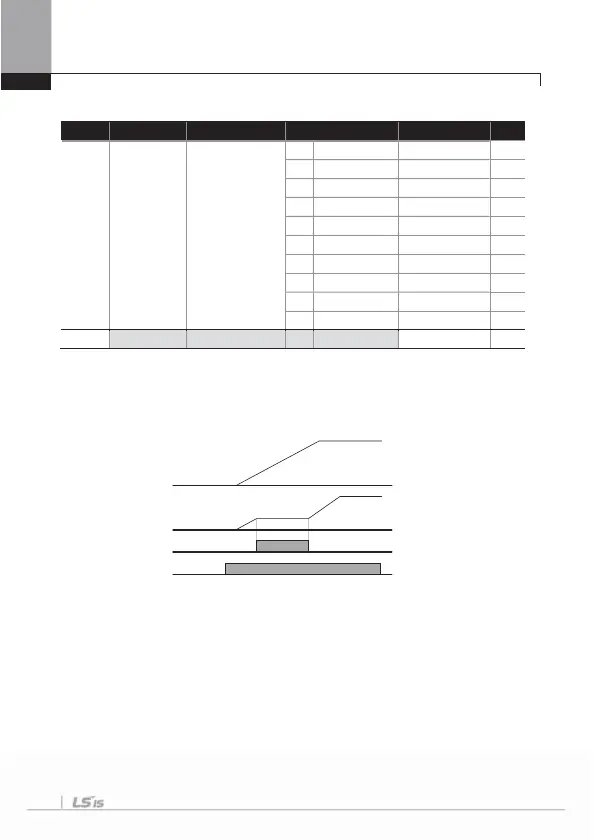

6.1.2 Analog command frequency fixation
Group Code No. Function Display Setting Displayed Setting Range Unit
DRV 07 Freq Ref Src
0 Keypad-1
0~9
-
1 Keypad-2
0~9
-
2 V1
0~9
-
3 I1
0~9
-
4 V2
0~9
-
5 I2
0~9
-
6 Int 485
0~9
-
7 Encoder
0~9
-
8 Fied Bus
0~9
-
9 PLC
0~9
-
IN 65~75 *Px Define 21 Analog Hold 65~75 -
*Px : P1~P8, P9~P11 (option)
This is the function of fixing the operating frequency when the terminal selected as the
Analog Hold among the multi-function terminals if you set the frequency by using the
analog input of the control terminal block.
Frequency
Px
Operating Command
Set Frequency
