LSIS SV-iS7 series - SV0550-0750 Is7 (400 V)

Chapter 3 Installation
3-12

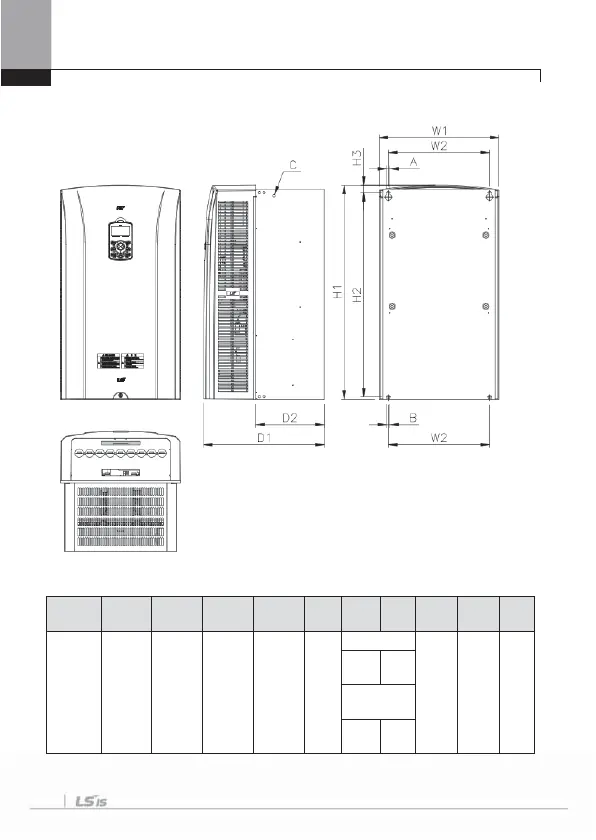

9) SV0550-0750iS7 (400V)
mm ( inches )
Inverter
capacity
W1 W2 H1 H2 H3 D1 D2 A B
C
SV0055~
0075
iS7-4
370.1
(14.57)
312.8
(12.31)
663.5
(26.12)
631.4
(24.85)
24.1
(0.94)
DCR Type
10
(0.39)
10
(0.39)
M8
373.3
(14.69
)
211.5
(8.32)
Non-DCR
Type
312.4
(12.29
)
150.6
(5.92)
