Chapter 6 Basic Functions
6-19
6.1.9 Motor output voltage adjustment
(Adjusting motor voltage when input power specification differs from motor
voltage specification)
Group Code No. Function Display Setting Display Setting Range Unit
BAS 15 Rated Volt - 220 180~480 V
Inputs the voltage of the motor plate. The set voltage value is the output voltage value of
the base frequency. Above the base frequency, if the input voltage is higher than the set
voltage, the output is in proportion to the set value but if the input voltage is lower than
the set voltage, the input voltage is produced. When 0 is set, the output voltage is
corrected according to the input voltage when the inverter is static. Above the base
frequency, if the input voltage is lower than the set voltage, the input voltage is produced.

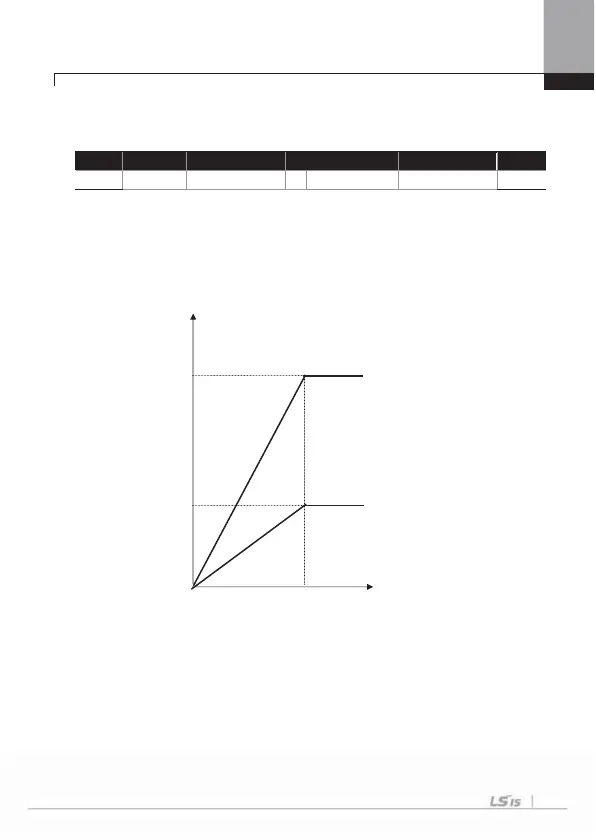

Output Frequency
Output
Voltage
Base Frequency
480V
180V
