LSIS SV-iS7 series - Mounting the Inverter; Power Cable Wiring

Chapter 3 Installation
3-26

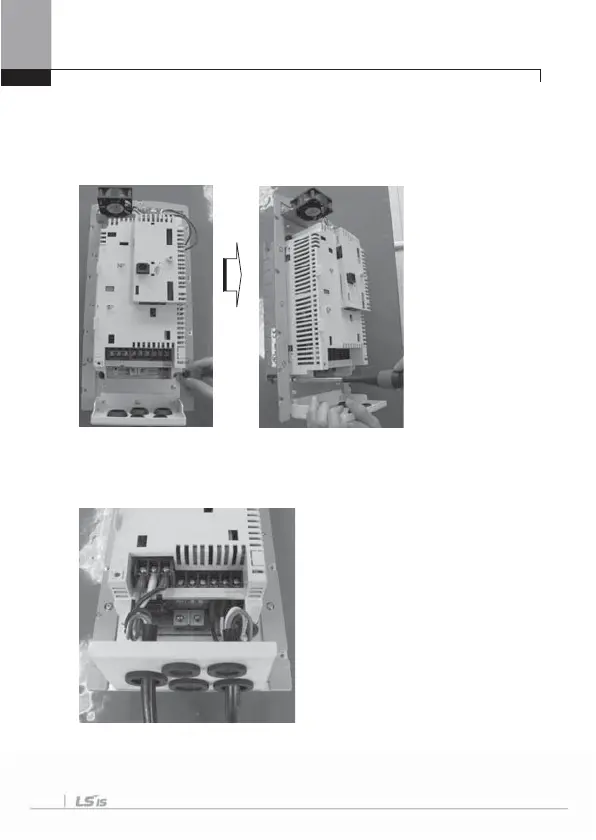

3) Mounting the inverter
- Remove the four rubber packings on the corner.
- Mount the inverter onto fixing hole on the panel and securely tighten the four screws
or bolts.
- Place the four rubber packings to the each corner.
4) Power cable wiring
- Connects the input/output power cable as followed picture.
- Refer to Chapter 4 Wiring for the detailed wiring.
