LSIS SV-iS7 series User Manual

Chapter 9 Peripheral Devices
9-8
Caution
In case of iS7 90~160kW, Dynamic braking unit for 220kW (SV2200DB-4) needs above listed DB resistor. If Dynamic braking unit
(SV075DBH-4) is connected in parallel, use above listed DB resistor in parallel.

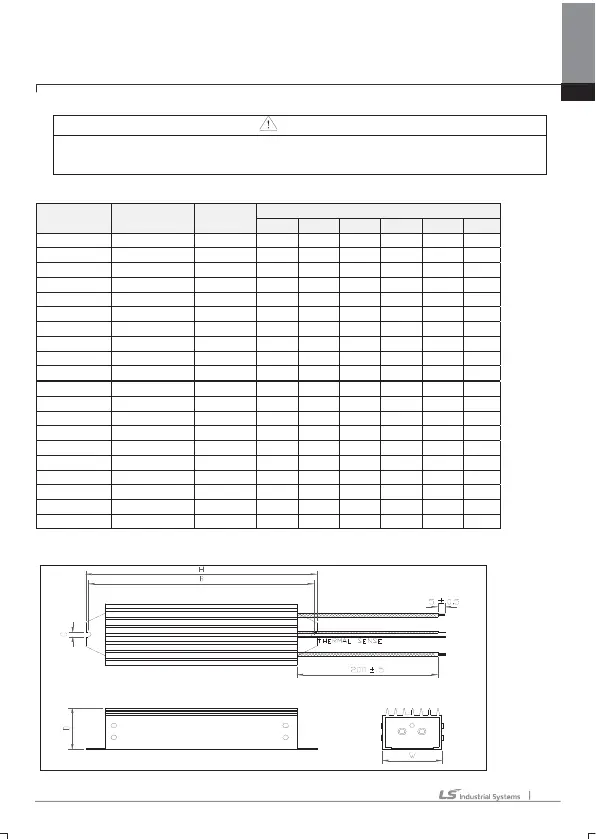

7) Appearance and size of braking resistor
Format Applied inverter TYPE
Size [mm]
W H D A B C
BR0400W150J SV 008IS7-2 1 64 412 40 - 400 6.3
BR0400W060J SV 015IS7-2 1 64 412 40 - 400 6.3
BR0400W050J SV 022IS7-2 1 64 412 40 - 400 6.3
BR0600W033J SV 037IS7-2 2 128 390 43 64 370 5
BR0800W020J SV 055IS7-2 3 220 345 93 140 330 7.8
BR1200W015J SV 075IS7-2 3 220 345 93 140 330 7.8
BR2400W010J SV 110IS7-2 3 220 445 93 140 430 7.8
BR2400W008J SV 150IS7-2 3 220 445 93 140 430 7.8
BR3600W005J SV 185IS7-2 3 220 445 165 140 430 7.8
BR3600W005J SV 220IS7-2 3 220 445 165 140 430 7.8
BR0400W600J SV 008IS7-4 1 64 412 40 - 400 6.3
BR0400W300J SV 015IS7-4 1 64 412 40 - 400 6.3
BR0400W200J SV 022IS7-4 1 64 412 40 - 400 6.3
BR0600W130J SV 037IS7-4 2 128 390 43 64 370 5
BR1000W085J SV 055IS7-4 3 220 345 93 140 330 7.8
BR1200W060J SV 075IS7-4 3 220 345 93 140 330 7.8
BR2000W040J SV 110IS7-4 3 220 445 93 140 430 7.8
BR2400W030J SV 150IS7-4 3 220 445 93 140 430 7.8
BR3600W020J SV 185IS7-4 3 220 445 165 140 430 7.8
BR3600W020J SV 220IS7-4 3 220 445 165 140 430 7.8
* TYPE 1 (Maximum 400 Watt)
