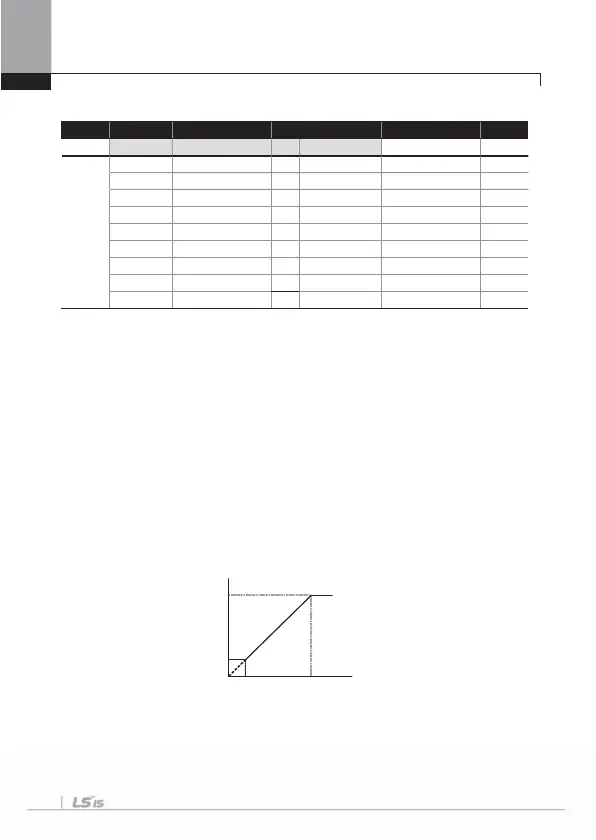

Chapter 6 Basic Functions
6-6
4) Frequency setting by current input into terminal block (I1 Terminal)
Group Code No. Function Display Setting Displayed Setting Range Unit
DRV 07 Freq Ref Src 3 I1 - -
IN
01 Freq at 100% - 60.00 0.00~ Max Freq Hz
20 I1 Monitor - 0.00 0~20 mA
22 I1 Filter - 10 0~10000 msec
23 I1 Curr x1 - 4.00 0~20 mA
24 I1 Perc y1 - 0.00 0~100 %
25 I1 Curr x2 - 20.00 0~20 mA
26 I1 Perc y2 - 100.00 0~100 %
31 I1 Inverting 0 No No/Yes -
32 I1 Quantizing - 0.04 0.04~10 %
Select I1 in DRV Group 07. Input current of 0~20mA into the I1 terminal of the terminal
block to set frequency.
IN-01 Freq at 100% : sets the operating frequency at the maximum current input. The
operating frequency when the value set in IN-26 is 100% is set.
E.g.1) If IN-01 is 40.00 and IN-23~26 is set at the default value, when 20mA is input into
the I1 terminal, the operation is at 40.00Hz.
E.g.2) If IN-26 is 50% and IN-01, 23~26 are set at the initial value, when 20mA is input
into the I1 terminal, the operation is at 30.00Hz.
IN-20 I1 Monitor : displays the current input into the I1 terminal. This is used for
monitoring the current input at the moment.
IN-22 I1 Filter : The set time refers to the time it takes the input current which has been
step input to reach about 63% of the I1 value that has been step input in the inverter.
IN-23 I1 Curr x1 ~ IN-26 I1 Perc y2 : You can set the slope of the output frequency and
offset value against the current as follows.
IN-31 I1 Inverting : You can turn the direction of the rotation.
IN-32 I1 Qunatizing : the same as quantizing function of IN-17. See “IN-17 V1
Quantizing” on page 6-3 in detailed user’s manual from website.
Set Frequency
IN- 26
IN- 24
IN - 23 IN-25
I1 Input
