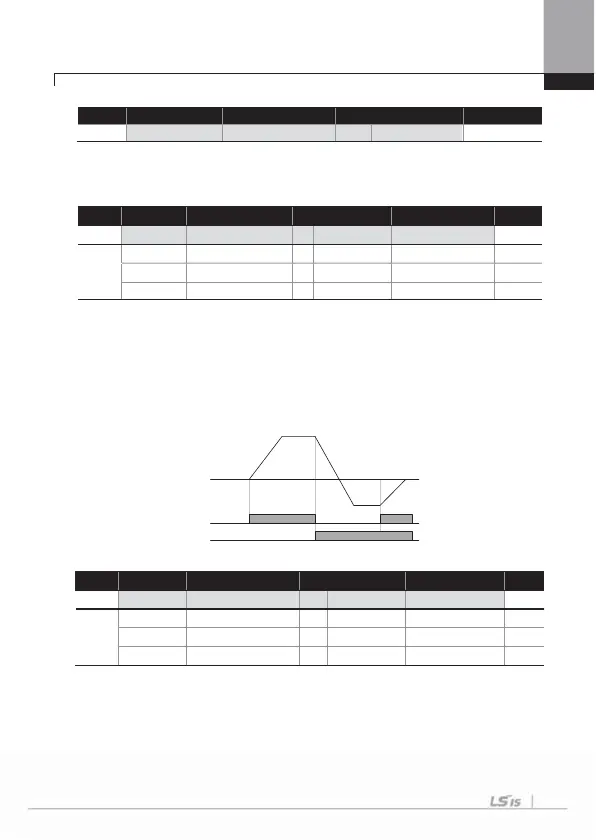

Chapter 6 Basic Functions
6-13
1) Keypad Operating Command: KeyPad
Group Code No. Function Display Initial Display Unit
DRV 06 Cmd Source 0 KeyPad -
If you set the DRV Group 06 with the keypad, operation starts using the FWD and REV
keys on the inverter keypad and stops using Stop key.
2) Terminal Block operating command 1 : Fx/Rx-1
Group Code No. Function Display Setting Display Setting Range Unit
DRV 06 Cmd Source 1 Fx/Rx-1 - -
IN
65~75 Px Define 1 FX - -
65~75 Px Define 2 RX - -
88 Run On Delay - 1.00 0.00~100 sec
*Px : P1~P8, P9~P11 (option)
Set DRV Group 06 at Fx/Rx-1. Select the terminal used for FX and RX operating
commands among multi-function terminals P1~P11 and set the function of the
appropriate terminal of IN 65~75 at FX and RX. It stops if the FX and RX terminals are
ON or OFF at the same time.
IN-88 Run On Delay: Operation starts after the set time, too when the FX or RX
terminal is input. It can be used where operation start synchronization with an outside
sequence is necessary.
3) Terminal Block operating command 2 : Fx/Rx-2
Group Code No. Function Display Setting Display Setting Range Unit
DRV 06 Cmd Source 2 Fx/Rx-2 - -
IN
65~75 Px Define 1 FX - -
65~75 Px Define 2 RX - -
88 Run On Delay - 1.00 0.00~100 sec
*Px : P1~P8, P9~P11 (option)
FX terminal is used for operating command and RX terminal is for selecting the rotation
direction. Set DRV Group 06 at Fx/Rx-2. Select the terminal used for FX and RX
operating commands among multi-function terminals P1~P11 and set the function of the
appropriate terminal of IN 65~75 at FX and RX.
G
FX
RX
Frequency
