LSIS SV-iS7 series User Manual

Chapter 4 Wiring
4-4

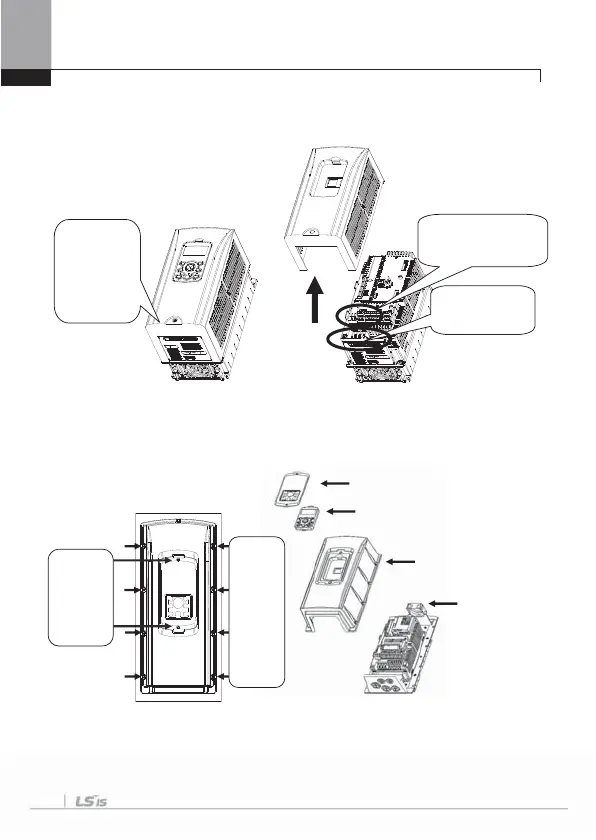

3) How to separate front cover
[IP21 Type]
[IP54 Type]
Separate the transparent keypad cover releasing fixed bolt and then separate keypad.
Separate the front cover releasing fixed bolt.
Before wiring, IP54 product must be installed on the panel.
Separate
front cover
releasing
the fixed
bolt.
I/O board control
circuit Terminal
Power circuit
terminal
Front
cover
fixed
bolt
Keypad
Keypad fixed cover
Wiring hole
Built-in
circulation
fan
Keypad
cover
fixed
bolt
