Chapter 5 How to Use Keypad
5-10
5.1.4 Group shift
1) Group Shift in Parameter Mode
If you press Right key in the Parameter Mode, the display changes as follows.
If you press Left key, the display order will be reversed.

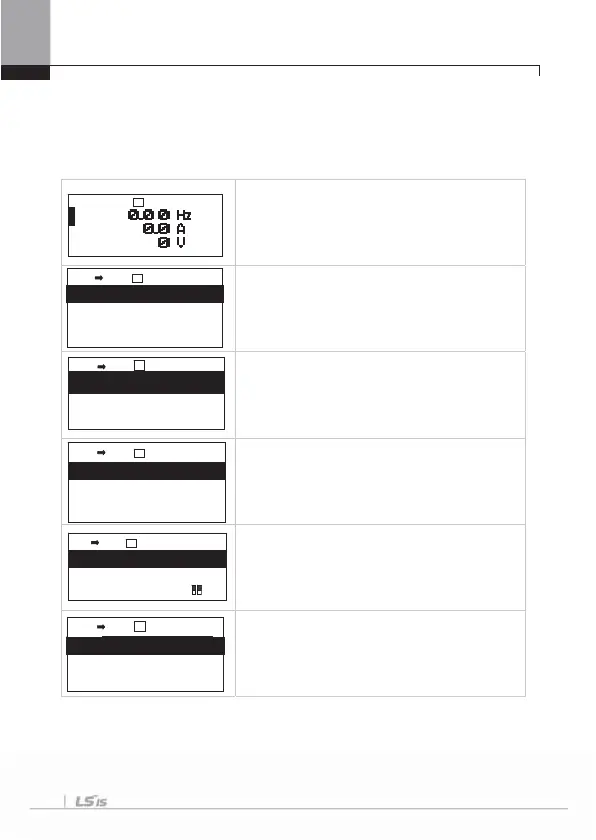

- Power on, a display emerges as shown on
the left. The present mode is the monitor
mode.
- Press Mode key once.
- You have shifted to Parameter Mode.
- The drive group of Parameter Mode is being
displayed.
- Press Right key once.
- You shift to Basic Function Group(BAS).
- Press Right key once.
- You shift to Advanced Function Group(ADV).
- Press Right Shift key 7 times.
- The group changed in sequence, PRT is
displayed.
- Press Right Shift key once.
- You come back to the Drive Group(DRV) of
Parameter Group.
MON T/K N STP 0.00Hz
PAR
G
ADV N STP 0.00Hz
00 Jump Code
24 CODE
01 Acc Pattern
Linear
02 Dec Pattern
Linear
PAR
G
DRV N STP 0.00Hz
00 Jump Code
9 CODE
01
Cmd Frequency
0.00 Hz
02 Cmd Torque
0.0 %
PAR
G
PRT N STP 0.00Hz
00 Jump Code
40 CODE
01 Load Duty
Heavy Duty
02 Phase Loss Chk
PAR
G
BAS N STP 0.00Hz
00 Jump Code
20 CODE
01 Aux Ref Src
None
02 Cmd 2nd Src
Fx/Rx-1
PAR
G
DRV N STP 0.00Hz
00 Jump Code
9 CODE
01 Cmd Frequency
0.00 Hz
02
Cmd Torque
0.0 %
