LSIS SV-iS7 series User Manual

Chapter 3 Installation
3-2
3.1.1 Cautions before installation
Be careful so that the plastic parts of the inverter may not be damaged. Do not
move the product holding the cover only. Do not install the product where there i
s vibration, a press or truck. Life of the inverter greatly influenced by the surround
ing temperatures, make sure that the surrounding temperature does not exceed th
e permitted temperature (-10 ~ 50qC).
The life of the inverter is affected by ambient temperature. Place that inverter inst
alled in of ambient temperatures should not exceed the following allowable temper
ature.
When the inverter is installed inside the panel, panel temperature must not excee
d the following allowable temperature. In other word, the ambient temperature insi
de or outside of the panel, regardless of the installation, needs to be measured a
round 5cm of the inverter.

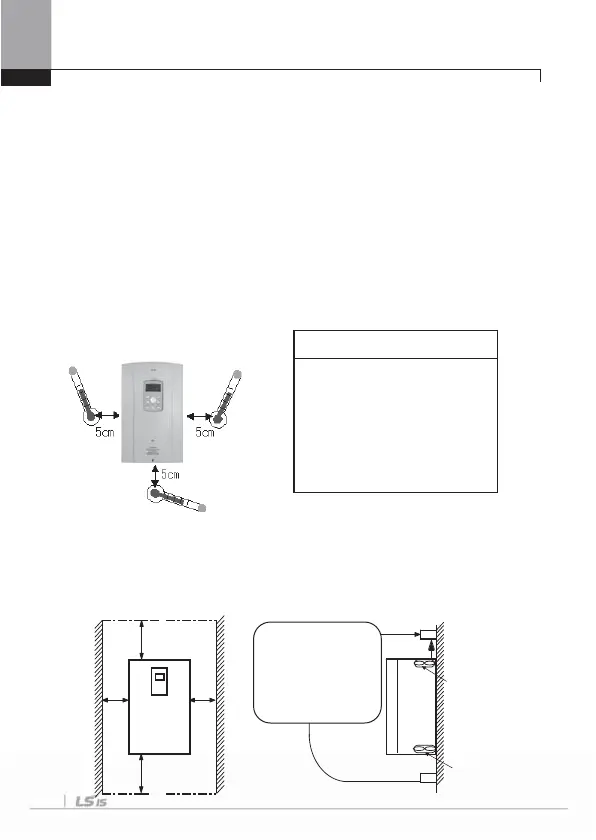

<Measurement Points of Surrounding Temperature>
Install the inverter on an inflammable surface because its temperature rises high
during operation.
Sufficient space is required to prevent heat saturation because the inverter emits
heat.
㟝GGGhG{G
jSGGGGGGG
{G
j{OoGkPGaGTGXWG¥G\W୅G G
}{OuGkPaGTGXW¥G[W୅G G
OoSG}{OuGkPG G \W୅SGG G _WLG
GGGGPG
pw\[GwGaGTXWG¥[W୅G
A: over 10cm
B
over
5cm
B
over
5cm
A: over10cm
Inverte
r
Enough space is
required for the
distribution duct not to
block the cooling air.
Cooling ai
r
Built-in cooling fan
(In case of forced
air cooling type)
Built-in cooling fan
(In case of
inhalation air
cooling type)
