Chapter 5 How to Use Keypad
5-15

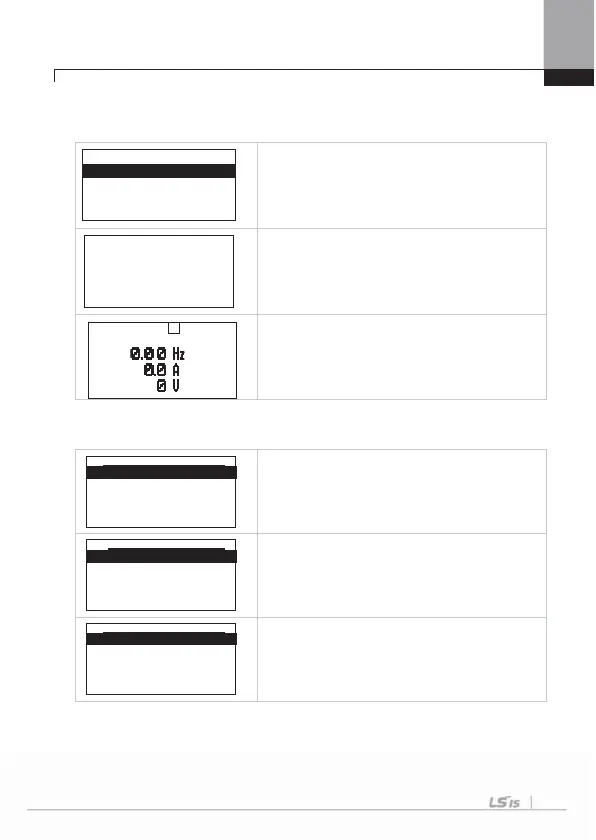

5.1.8 Failure status monitoring
1) Failure during operation
- In case of a failure during operation, the
mode automatically shifts to Trip Mode and
the type of the current failure is displayed.
- If you press Down key, the output frequency,
current and operating status at the time of
the failure occurring are displayed.
- If the failure status is terminated by Reset,
the keypad before the failure comes back.
2) Multiple failures at a time
- In case of multiple failures, the number of
failures is displayed next to the failure type.
- Press PROG.
- The type of failures is displayed.
- Press PROG.
- The display mode before failure checking
comes back.
TRP current
Over Voltage (01)
01 Output Freq
48.30 Hz
02 Output Current
33.3 A
TRP Last-1
01 Output Freq
48.30 Hz
02 Output Current
33.3 A
03 Inverter State
Stop
MON T/K N STP
0.0A
TRP current
Over Voltage (02)
01 Output Freq
48.30 Hz
02 Output Current
33.3 A
TRP current
00 Trip Name ( 2)
0 Over Voltage
1 Externa Trip
TRP current
Over Voltage (02)
01 Output Freq
48.30 Hz
02 Output Current
33.3 A
