Chapter 6 Basic Functions
6-15
pattern without Speed Search.
If this function is not selected, operation resumes after the operating commands is turned
OFF and ON again.
Caution
Be careful with this function, which causes the motor to rotate as soon as the power is
supplied.

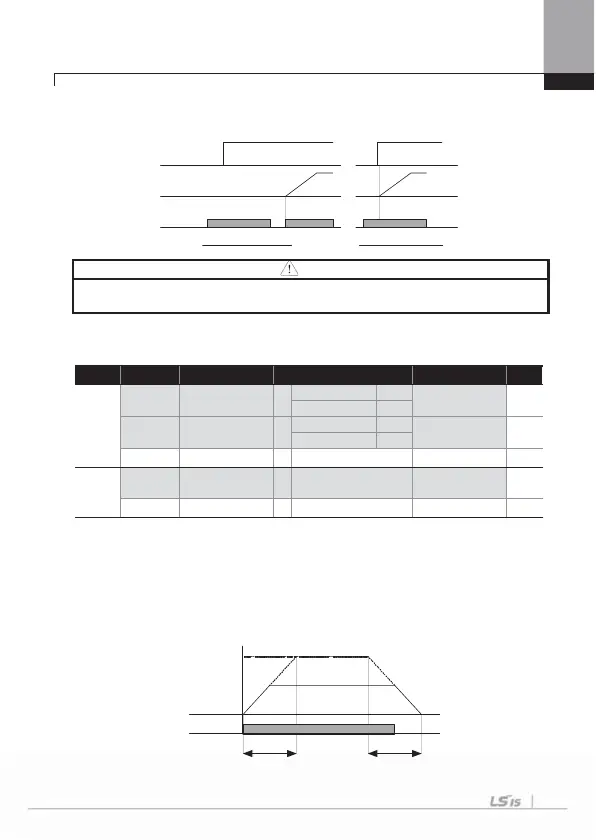

6.1.8 Setting of accelerating/decelerating time and pattern
1) Setting of accelerating/decelerating time on the basis of the maximum frequency
Group Code No. Function Display Setting Display Setting Range Unit
DRV
03 Acc Time -
Below 75kW 20.0
0~600 sec
Above 90kW 60.0
04 Dec Time -
Below 75kW 30.0
0~600 sec
Above 90kW 90.0
20 Max Freq - 60.00 0~400 Hz
BAS
08 Ramp T Mode 0 Max Freq
Max Freq/Delta
Freq
-
09 Time scale 1 0.1 0.01/0.1/1 sec
If you set BAS-08 at Max Freq, you can accelerate or decelerate at an equal slope on
the basis of the maximum frequency regardless of the operating frequency.
The acceleration time set in DRV-03 is the time it takes the frequency to reach the
maximum value from 0 Hz and the deceleration time of 04 is the time it takes the
frequency to stop at 0 Hz from the maximum frequency.
E.g.) If you set the maximum frequency at 60.00 Hz, Acc/Dec time at 5 seconds and
operating frequency at 30 Hz, the time required is 2.5 seconds.
FX
Frequency
Accel Time
Decel Time
Max
Frequency
G
G
Frequency
Power
When ADV -10 = 0 When ADV -10=1
Operating
command
To Next Page
