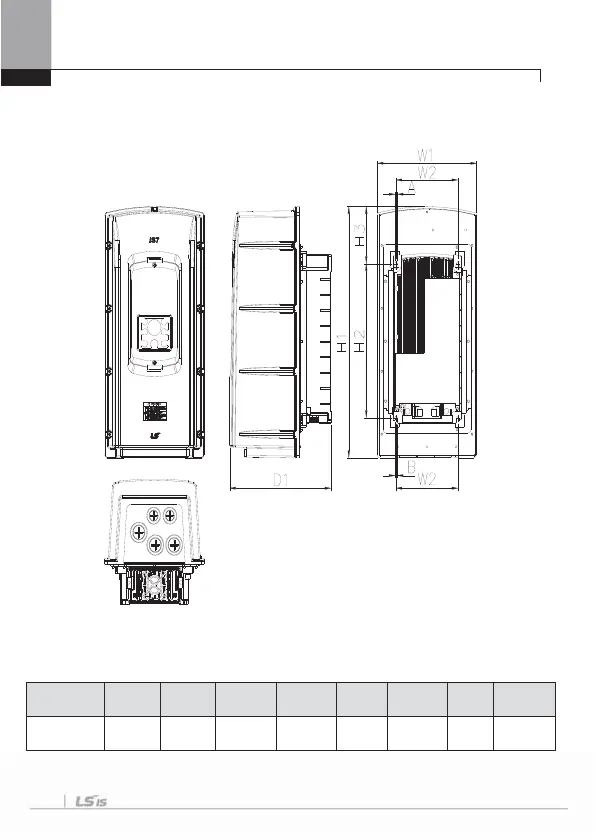

3.1.3 External dimension (UL Enclosed Type12, IP54 Type)
1) SV0008-0037iS7 (200V/400V)
mm ( inches )
Inverter
capacity
W1 W2 H1 H2 H3 D1 A B
SV0008~0037
iS7-2/49
204.2
(8.03)
127
(5.0)
419
(16.49)
257
(10.11)
95.1
(3.74)
208
(8.18)
5
(0.19)
5
(0.19)
