Chapter 4 Wiring
4-24
4.2.3 Checking for normal working
1) Motor forward/reverse direction and Normal working checking by KEYPAD operation
After setting Cmd Source of DRV-06 is 0 : Keypad, Freq Ref Src of DRV-07 is 0 :
Keypad-1 and set DRV-01 : Cmd Frequency into temporary speed, Command forward
operation by pressing FWD please. At this time, shaft of motor at the side of load rotates
into counterclock wise direction. Otherwise, it must be changed 2 terminals among the
inverter output terminal U, V, W.

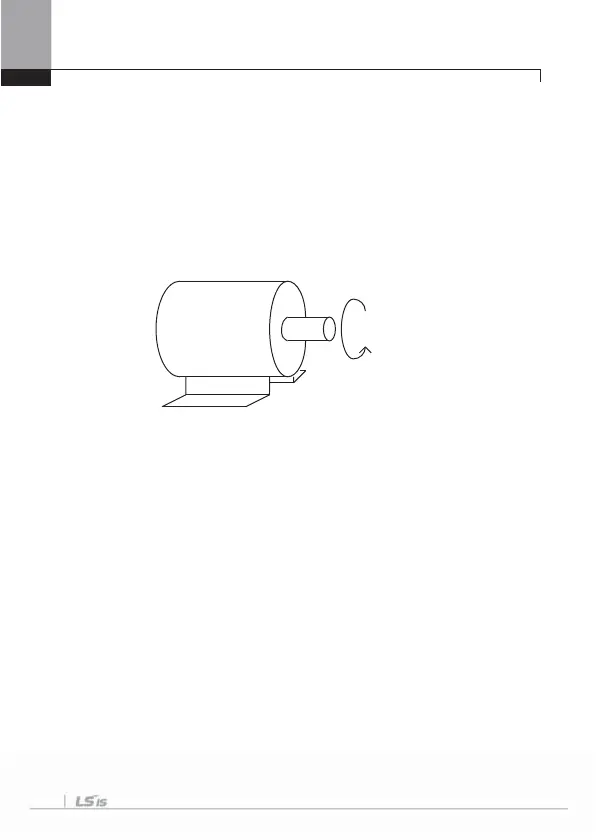

Forward
direction
Operation
